Kubota U50-5 Excavator

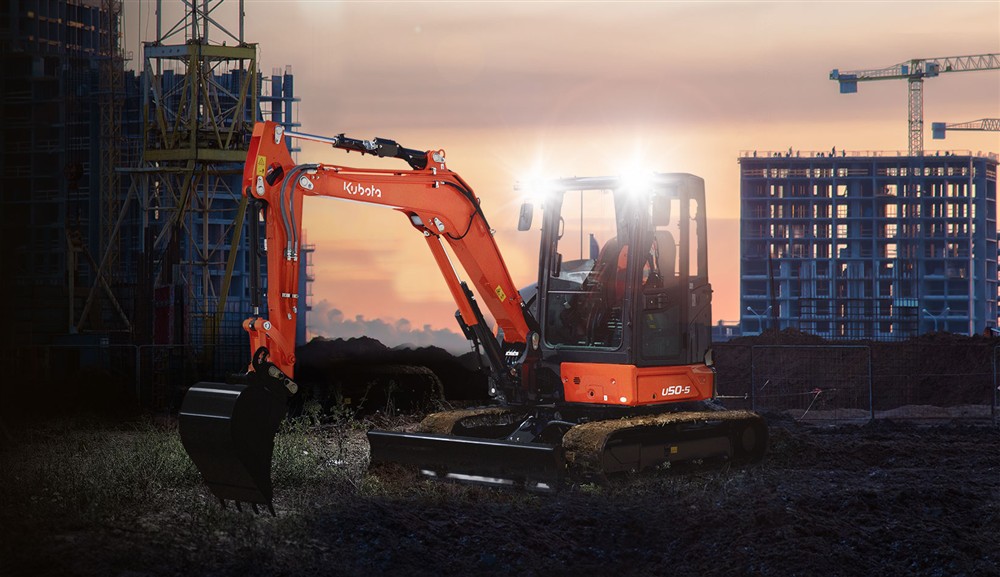

New Kubota U50-5 GL Cabin Mini Excavator

Tight Tail Swing Power, Site-Ready Safety & Superior Reach. The Kubota U50-5 GL is a next-generation, 5-tonne class mini excavator engineered to excel on confined, high-profile jobsites where space is limited and safety standards are absolute. Built with a tight tail swing footprint, this versatile machine allows operators to rotate and dig confidently against walls, roads, and obstructions. This premium configuration comes fully equipped with a factory-fitted Amber and Green Flashing Beacon Kit, providing automatic compliance on strict commercial construction and utility sites where the green beacon signals a secured operator seatbelt. Featuring continuous, surface-friendly Rubber Tracks over a rigid Fixed Undercarriage, and outfitted with a factory Extended Long Arm, the U50-5 provides impressive excavation depths, strong lifting capacities, and unmatched stability across mixed Island terrain.

Dual Safety Beacons

  • Amber Beacon: Highly visible warning strobe signals active machine operation to ground staff.
  • Green Safety Beacon: Automatically illuminates when the operator’s seatbelt is correctly buckled.
  • Site Compliant: Fully meets strict health and safety site regulations for major building contractors.
  • Factory Integrated: Professionally wired directly into the chassis electrical system for maximum reliability.
Request a Quote
Kubota U50-5 Overview

Commercial Fleet Sales

  • Anti-Theft System: Secured using Kubota’s industry-leading unique electronic coded-key architecture.
  • Complete Setup PDI: Undergoes a comprehensive multi-point technician check before delivery.
  • Island Support: Direct, local support for warranty, servicing, and replacement parts via Stubbings Bros.
  • Tax-Efficient Asset Finance: Customized commercial hire-purchase solutions are available for local companies.

Tight Tail Swing Agility

  • Confined Operations: Tight tail swing allows smooth, risk-free rotation close to structures.
  • Stage V Clean Engine: Direct-injection Common Rail System (CRS) with DPF delivers 47.6 PS.
  • Rubber Tracks Protection: Tough 400 mm rubber tracks prevent scuffing on roads and paving.
  • Auto-Shift Down: Intelligently drops travel gears under load for smoother backfilling.

Deluxe Comfort & Reach

  • Extended Long Arm: Achieves a formidable digging depth of 3,550 mm with a reach of 5,960 mm.

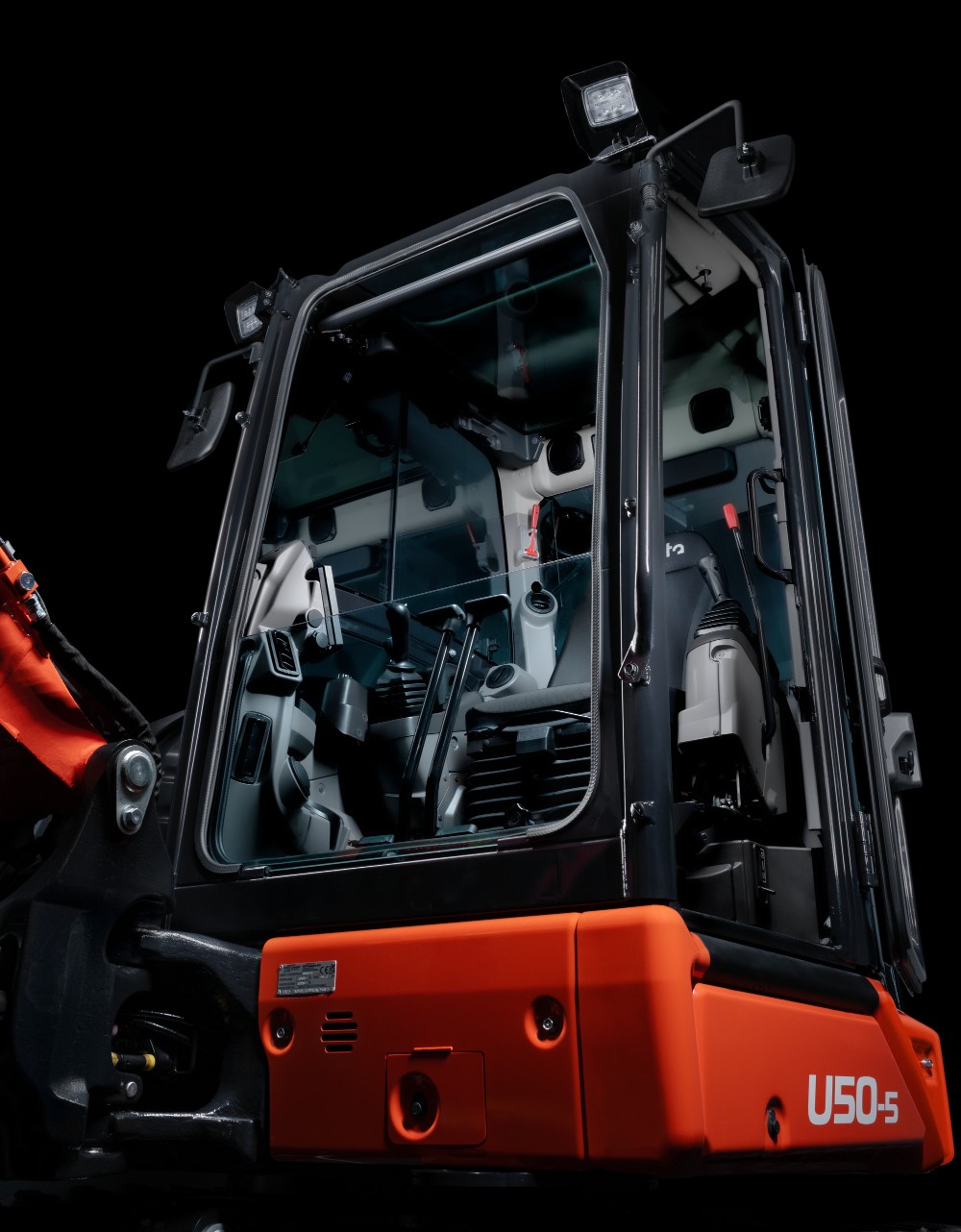

  • Heated Luxury Cabin: Extremely spacious layout with superior acoustic insulation and premium seat.
  • 7″ Color LCD Screen: High-definition interface offering full control of diagnostics and hydraulic presets.
  • Proportional Hydraulics: Precision thumb-wheel auxiliary controls integrated directly into the joysticks.

Technical Specifications – Kubota U50-5 GL Cabin

SPECIFICATION DETAILS
Operating Weight4,890 kg
Engine ModelKubota V2203-CR-TE5 (4-Cylinder Stage V with DPF)
Engine Output35.0 kW / 47.6 PS @ 2200 rpm
Tail Swing TypeTight Tail Swing
Track ConfigurationLow-Impact Rubber Tracks (400 mm width)
Arm ConfigurationExtended Long Arm Edition
Max. Digging Depth3,550 mm
Max. Digging Reach5,960 mm
Safety IndicatorsFactory Installed Dual Beacon Kit (Amber & Green)
Auxiliary Hydraulic Flow (AUX1)74.0 L/min (Proportional Control)

Kubota U50-5 Model Variants & Specifications

MODEL CODE SPECIFICATION / CONFIGURATION DETAILS PART / ORDER NUMBER
U50-5 GL Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm, Amber and Green Beacon[cite: 3] RD47700180[cite: 3]
U50-5 L Cabin, Steel Tracks, Fixed Undercarriage, Long Arm, Amber and Green Beacon[cite: 3] RD47701180[cite: 3]
U50-5 KGLS2 Air Conditioned Cabin, Rubber Tracks, Fixed Undercarriage, Long Arm, Hand Auxiliary 1&2, Amber and Green Beacon[cite: 3] RD47760180[cite: 3]
U50-5 KLS2 Air Conditioned Cabin, Steel Tracks, Fixed Undercarriage, Long Arm, Hand Auxiliary 1&2, Amber and Green Beacon[cite: 3] RD47761180[cite: 3]

Authorized Kubota Construction Equipment Dealer

Stubbings Bros: Providing elite-level plant support, technical service, and genuine parts across the Isle of Wight.
