New Kubota KX016-4V HG Canopy Mini Excavator
Unmatched Access, Flexible Stability: The Ultimate Compact Specialist with Expandable Undercarriage. The Kubota KX016-4V HG sets the industry standard for versatility in the 1.5-tonne class. Its standout feature is a hydraulic Variable Undercarriage, which quickly retracts down to just 990 mm to glide through narrow garden gates or tight alleys, and then expands out to 1,240 mm for a rock-solid digging stance. This premium HG specification features an open, protective 4-Post Canopy, providing operators with panoramic 360-degree site visibility and rapid step-in access. Fitted with high-performance Rubber Tracks to safeguard delicate ground surfaces, and paired with an efficient Standard Arm layout for speedy cycle times and high breakout forces, the KX016-4V HG is uniquely engineered for precision utility works, complex landscaping, and space-restricted urban building projects.
Variable Undercarriage
- Hydraulic Width Adjustments: Switch between a slim 990mm tracking width and a full 1,240mm digging footprint in seconds.
- Confined Corridor Access: Retracts effortlessly to travel through residential doorways, narrow pathways, and property gates.
- On-Demand Lifting Power: Fully expanding the tracks significantly improves over-the-side lifting balance and stability.

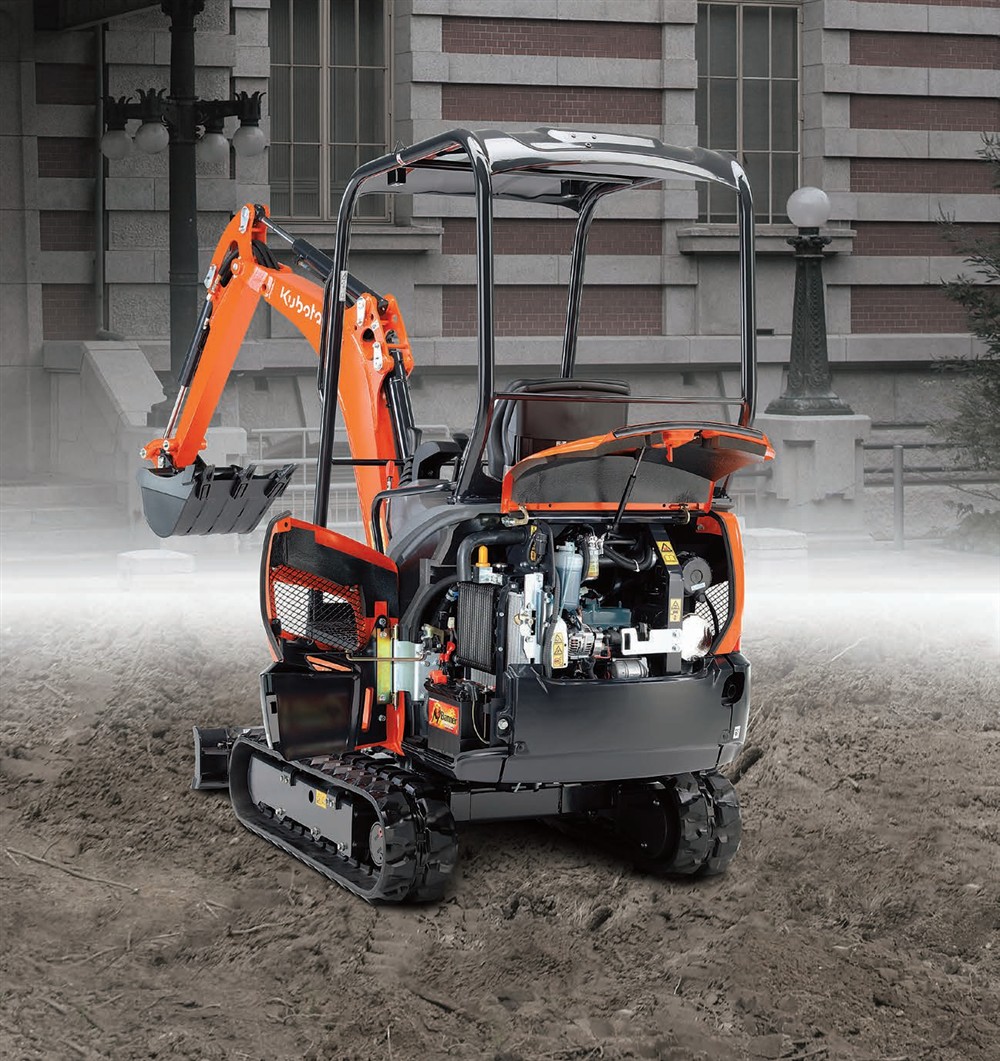

360° Safety Canopy
- Total Vision Operation: Zero cabin glass panes or thick frames ensure a clear view of your surroundings and trenches.
- ROPS/FOPS Safety Kit: Structural overhead frame delivers robust rollover and falling object operator protection.
- Easy Entry Layout: Minimizes down-time by removing cab doors entirely, allowing operators to transition on and off the machine instantly.
Surface-Safe Rubber Tracks
- Low Ground Pressure: Sturdy rubber tracks distribute weight evenly to prevent lawn scuffs and pavement markings.
- Folding Dozer Blade: Fitted with easy-to-fold extension pins to match the track width adjustments quickly.
- Protected Hosing: Hydraulic lines are run cleanly within the boom structure to avoid snagging damage.
Efficient Standard Arm
- Fast Working Cycles: Engineered arm geometry delivers impressive bucket speed and responsive crowd forces.

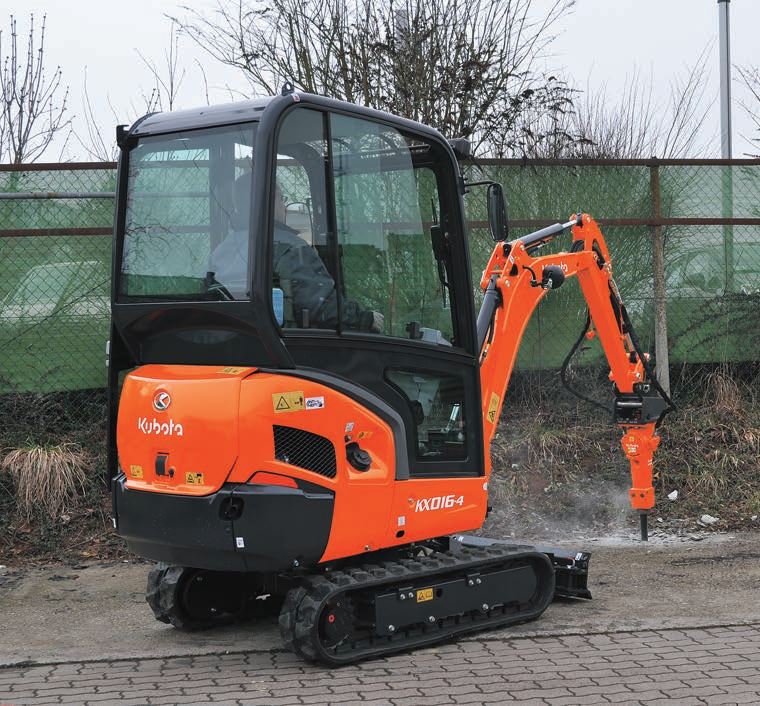

- Auxiliary Ready: Proportional single-line hydraulics are pre-piped down the arm to handle augers and breakers.
- Kubota Anti-Theft: Fully safeguarded by Kubota’s electronic coded key anti-theft system for ultimate site peace of mind.
Model Variations & Specifications
| Model Code | Configuration / Specification | Product Code |
|---|---|---|
| KX016-4 VHG | Canopy, Rubber Tracks, Variable Undercarriage, Standard Arm | RGB2713150 |

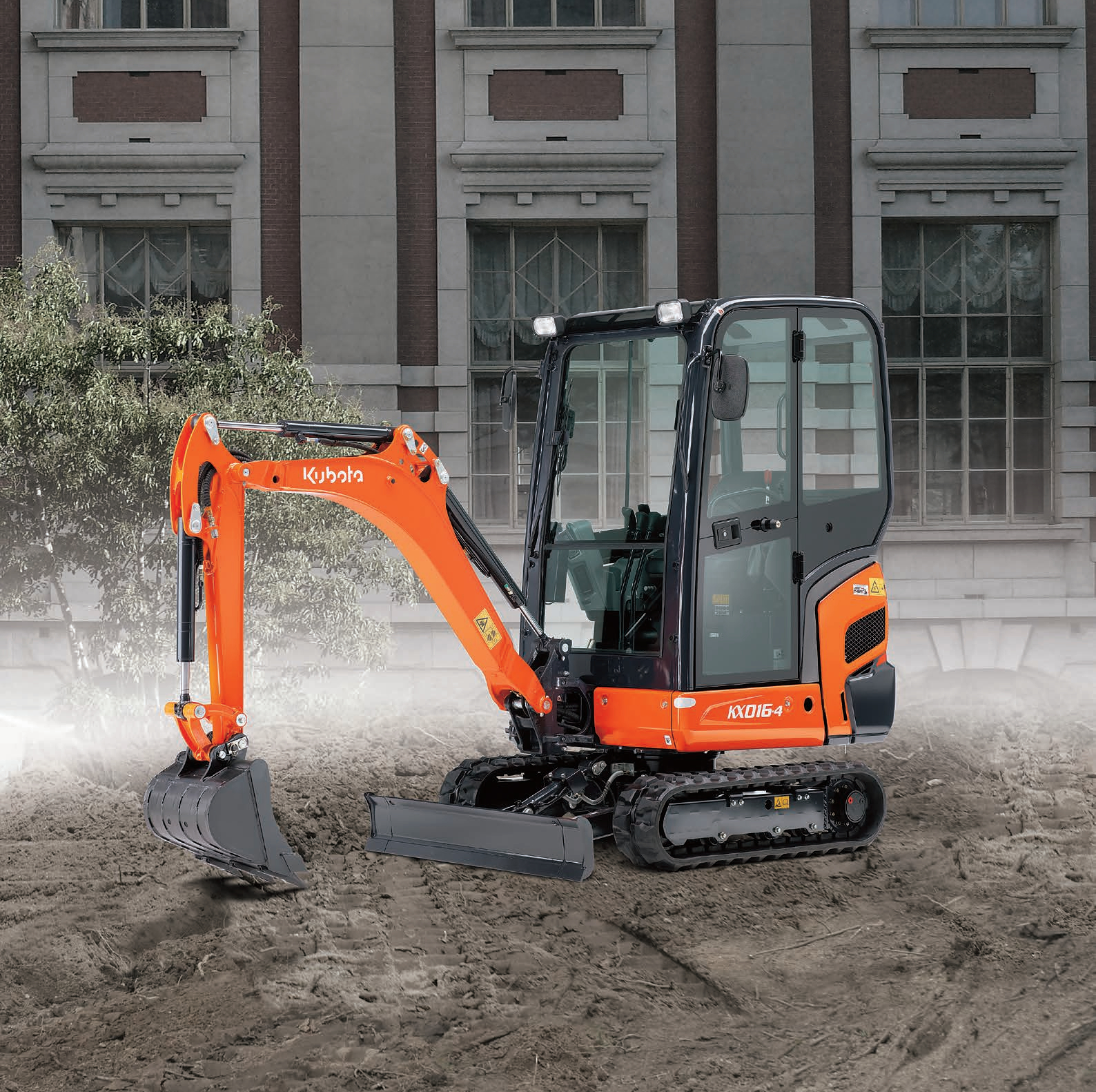

| KX016-4 VG | Cabin, Rubber Tracks, Variable Undercarriage, Standard Arm | RGB2723150 |
Technical Specifications – Kubota KX016-4V HG (Variable Track Edition)
| SPECIFICATION | DETAILS |
|---|---|
| Operating Weight | 1,540 kg |
| Engine Model | Kubota D782 (Stage V Liquid-Cooled Diesel) |
| Engine Output | 9.6 kW / 13.0 PS @ 2300 rpm |
| Operator Station | Open 4-Post Canopy (ROPS / FOPS Certified) |
| Track Configuration | High-Grip Premium Rubber Tracks |
| Undercarriage Type | Hydraulic Variable Tracking System (990 mm to 1,240 mm) |
| Arm Configuration | Standard Efficiency Arm |
| Auxiliary Piping | Standard Auxiliary Line to Arm End |
| Max. Digging Depth | 2,250 mm |
| Max. Digging Reach | 3,790 mm |
| Max. Dumping Height | 2,290 mm |
| Bucket Digging Force | 13.7 kN (1,400 kgf) |
| Fuel Tank Capacity | 21 Litres |
| Anti-Theft Protection | Kubota Coded Key Engine Immobilizer System |
