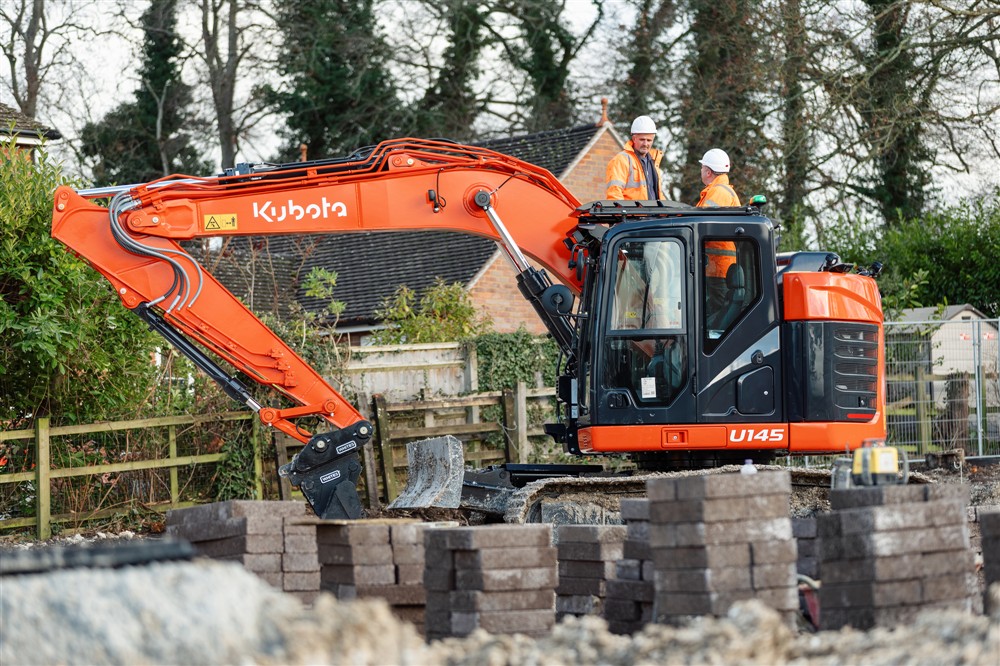

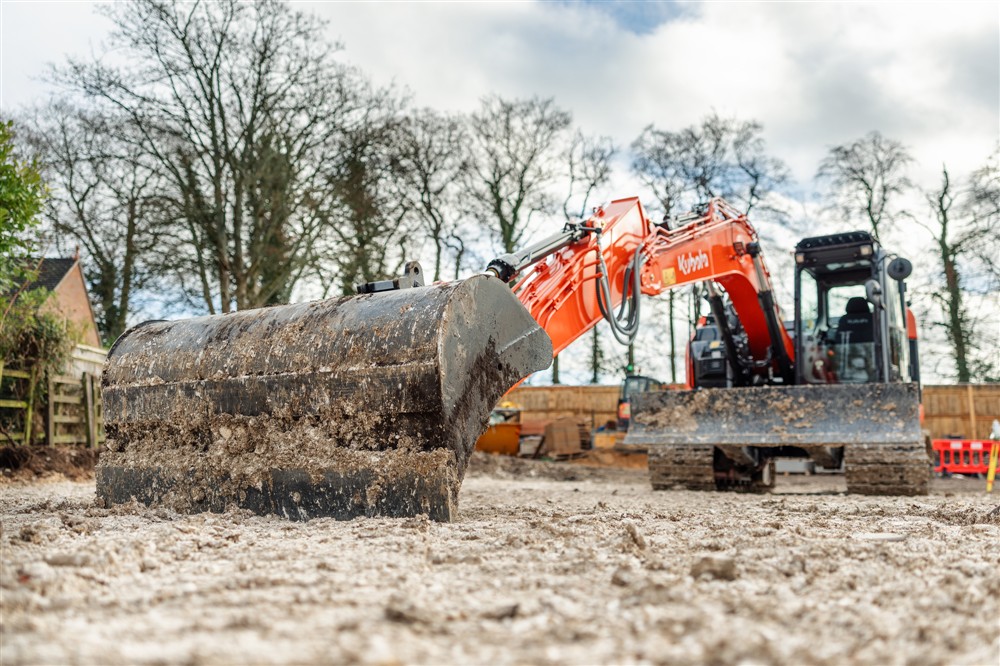

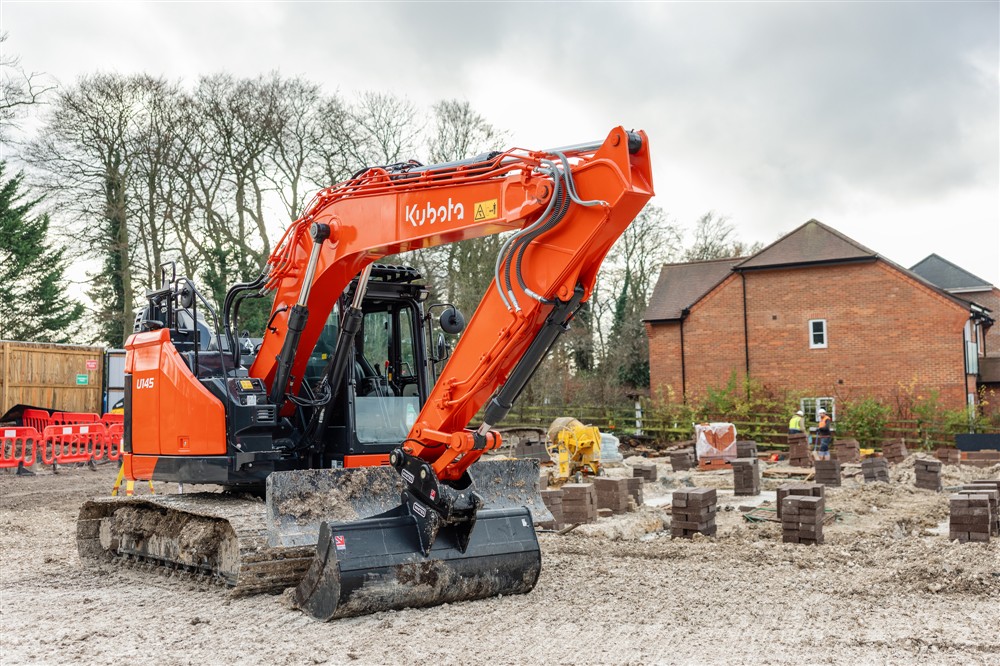

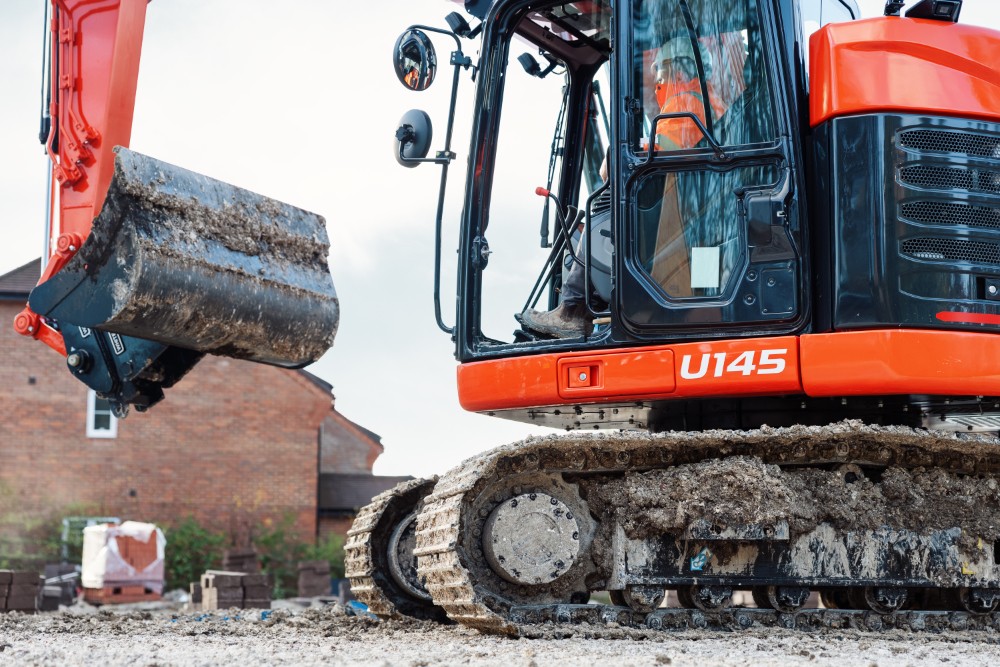

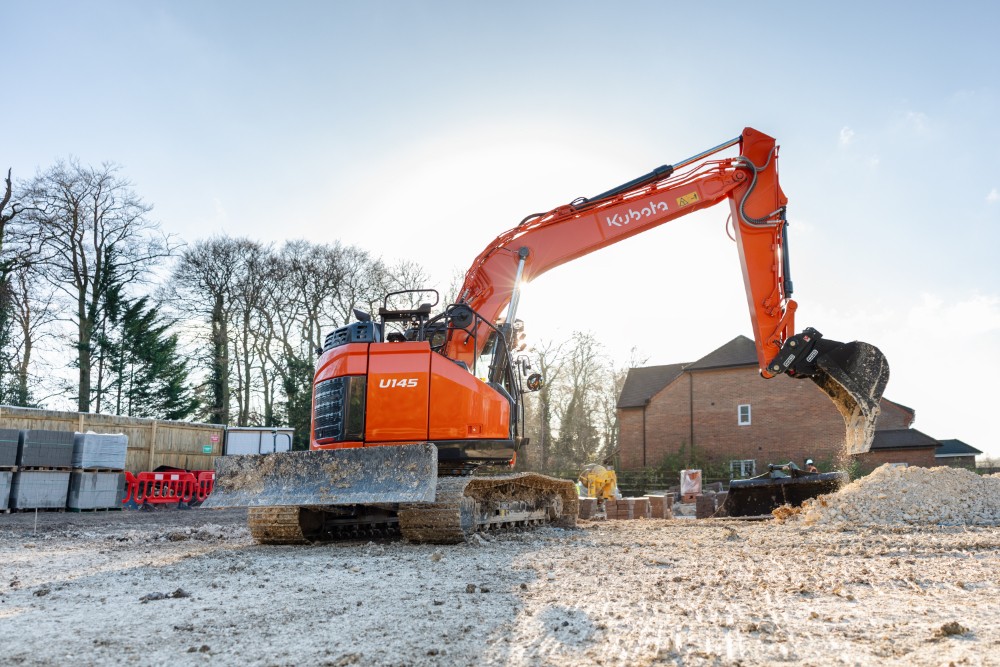

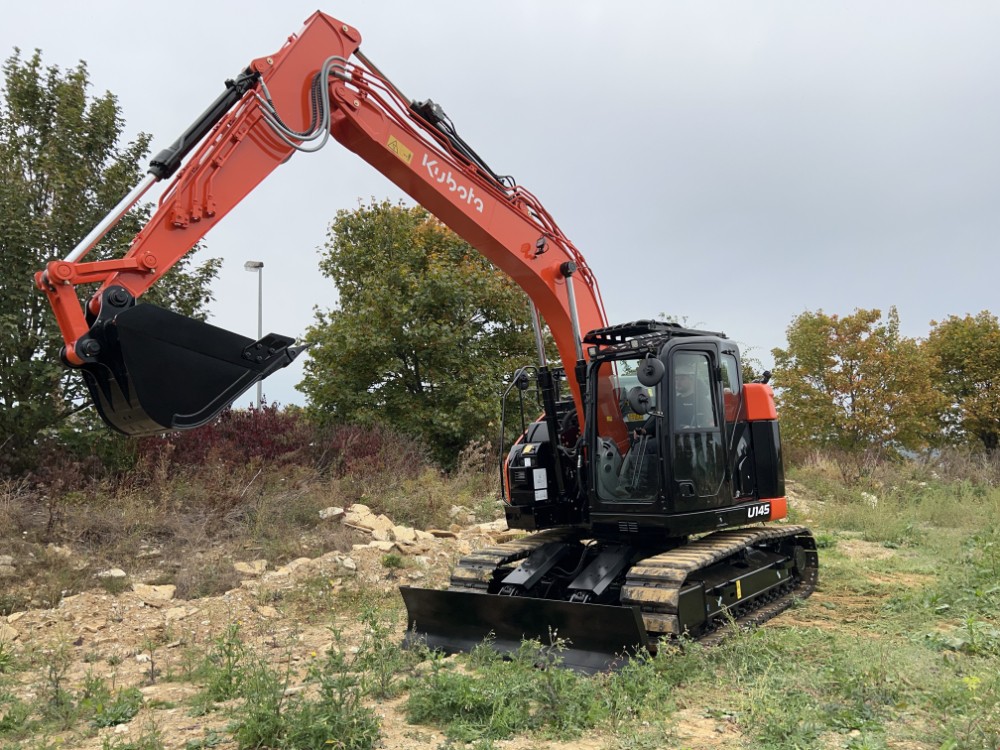

Kubota U145 14-Tonne Zero Tail Swing Excavator
Experience Unparalleled Performance with Kubota’s Flagship 14-Tonne Excavator. Designed for heavy-duty construction, civil engineering, and restricted utility sites, the U145 combines optimized high-flow load-sensing hydraulics with a zero-tail swing profile. Powered by an EU Stage V compliant turbo diesel engine, it delivers exceptional breakout force, superior all-terrain stability, and unmatched operator comfort in a tight-tail package.
14 Tonne Zero Tail Swing Excavators – Model Variants
| 14 Tonne Zero Tail Swing Excavators | Specifications / Configuration | Product Code |
|---|---|---|
| U145 DW | Cabin, Wide Steel Tracks, Short Undercarriage, Dozer | LR10900050 |
| U145 DWL | Cabin, Wide Steel Tracks, Short Undercarriage, Long Arm, Dozer | LR10900080 |
| U145 W | Cabin, Wide Steel Tracks, Long Undercarriage | LR10900110 |
| U145 WL | Cabin, Wide Steel Tracks, Long Undercarriage, Long Arm | LR10900140 |
| U145 2PDW | Cabin, Wide Steel Tracks, Short Undercarriage, 2 Piece Boom, Dozer | LR10900170 |
| U145 2PDWL | Cabin, Wide Steel Tracks, Short Undercarriage, 2 Piece Boom, Dozer, Long Arm | LR10900200 |
Advanced Performance Modes
- Three Working Modes: Switch between Super Power (SP), Heavy (H), and Auto (A) modes to match workload requirements.
- Auto-Shift 2-Speed Travel: Smooth transition up to 5.6 km/h for efficient site repositioning.

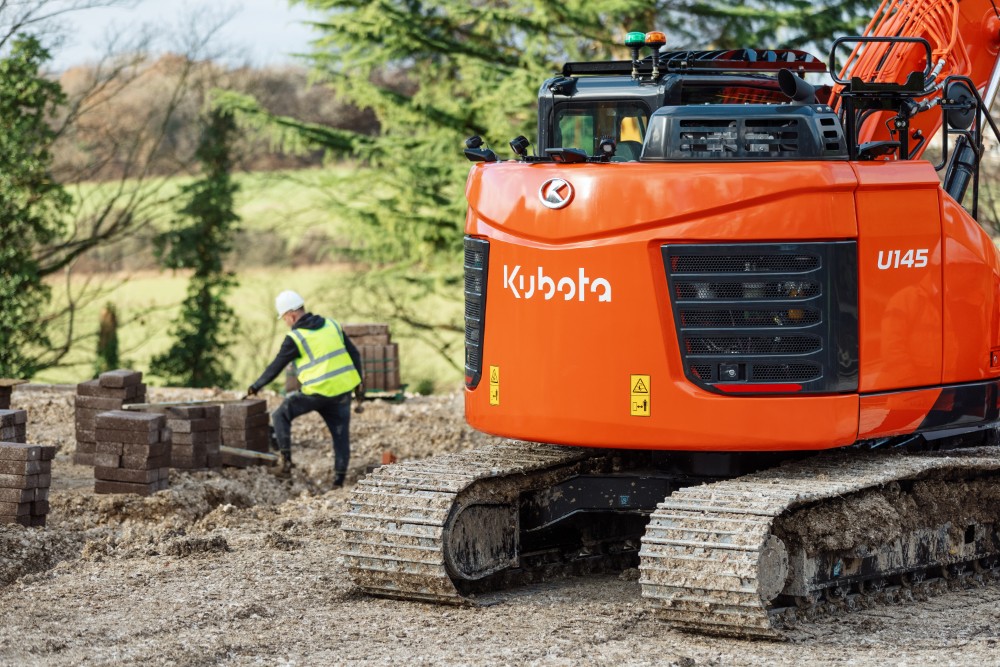

- Zero Tail Swing: 360-degree swivel stability makes it ideal for confined urban and roadside applications.
Optimized Hydraulics
- Dual Auxiliary Circuits: Complete with Spool Stroke Control (SSC) for precise multi-attachment operation.
- Boom Down Energy Save (BES): Automatically recycles hydraulic flow to boost fuel efficiency during lowering.
- Power Save Control: Automatically reduces pump flow when idle to minimize fuel waste.
Luxurious Cab & Comfort
- Heated Air-Suspension Seat: Fully adjustable with reclining backrest and integrated climate controls.
- 7-Inch Widescreen Monitor: Crisp colour display for machine diagnostics, flow tuning, and camera feeds.
- Pressurised Cabin: Excellent leg/head space with automatic air conditioning and low noise levels.
Safety & Visibility
- 270-Degree Surround View: Multi-camera vision system linked directly to the main cabin monitor.
- FOPS Level 2 Certified Guard: Robust top cab guard and anti-drop valves on boom and arm cylinders.
- LED Work Lighting: Bright energy-efficient lighting package complete with an integrated rain deflector.
See it in action…
Technical Specifications – Kubota U145 Excavator
| SPECIFICATION | MONO BOOM DETAILS | 2-PIECE BOOM DETAILS |
|---|---|---|
| Machine Operating Weight | Approx. 14,640 kg (with dozer) / 14,500 kg (without) | Approx. 15,621 kg |
| Engine Power (ISO 14396) | 106.7 PS (78.5 kW) @ 2000 rpm | 106.7 PS (78.5 kW) @ 2000 rpm |
| Emissions Standard | EU Stage V 4-Cylinder Diesel | EU Stage V 4-Cylinder Diesel |
| Maximum Digging Depth | 5,510 mm | 5,310 mm |
| Maximum Reach at Ground Level | 9,340 mm | 9,470 mm |
| Maximum Digging Force (Bucket) | 90 kN | 90 kN |
| Travel Speed (Low / High) | 3.4 km/h / 5.6 km/h (Auto-Shift) | 3.4 km/h / 5.6 km/h (Auto-Shift) |
| Auxiliary Hydraulic Flow (AUX 1 / AUX 2) | 126 L/min / 60.5 L/min | 126 L/min / 60.5 L/min |
| Tail Swing Type | Zero Tail Swing | Zero Tail Swing |
| Cab & Safety Rating | ROPS / FOPS Level 2 Certified | ROPS / FOPS Level 2 Certified |
