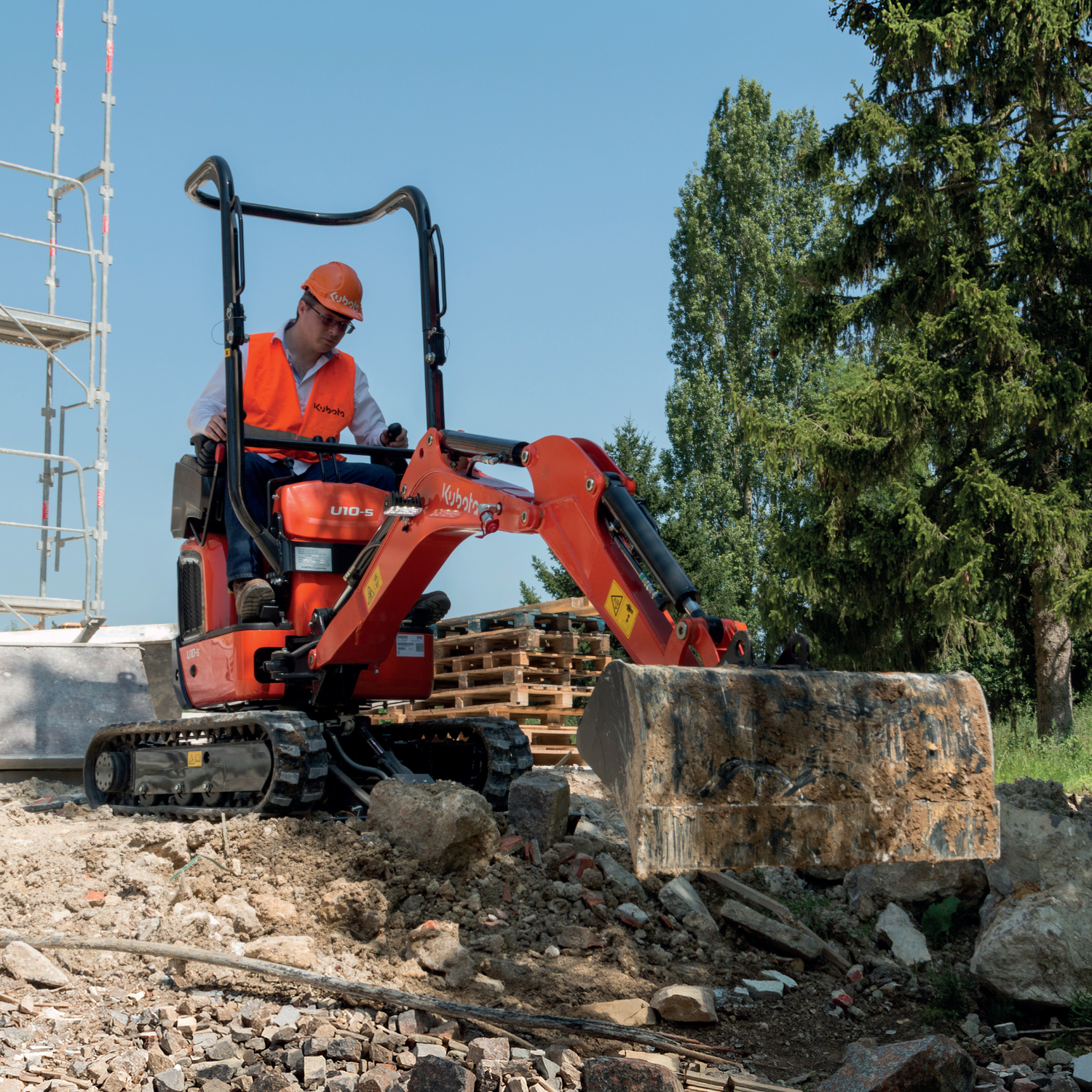

New Kubota U10-5 Micro Excavator (1 Tonne)
Ultra-Compact Zero Tail Swing, Foldable ROPS, Exceptional Digging Performance. The Kubota U10-5 sets the benchmark for compact micro excavators, designed specifically to access tight domestic passageways, doorways, and restricted inner-city job sites. Powered by a Stage V compliant 10.3 HP Kubota diesel engine, the U10-5 combines Zero Tail Swing with side-lever hydraulic controls for maximum precision and operator comfort. Featuring a variable hydraulic track frame that retracts down to just 750 mm and a foldable ROPS safety frame, this 1-tonne micro excavator passes effortlessly through standard interior doors before expanding for superior digging stability.
Kubota Stage V Engine
- Stage V Clean Diesel: Reliable, fuel-efficient Kubota D722 3-cylinder engine delivering smooth hydraulic performance.
- Vibration-Damped Mounting: Engine bay engineered for lower noise levels and reduced operator fatigue.
- Easy Access Maintenance: Fully opening rear engine hood provides quick access for daily routine checks.
Ultra-Compact Dimensions

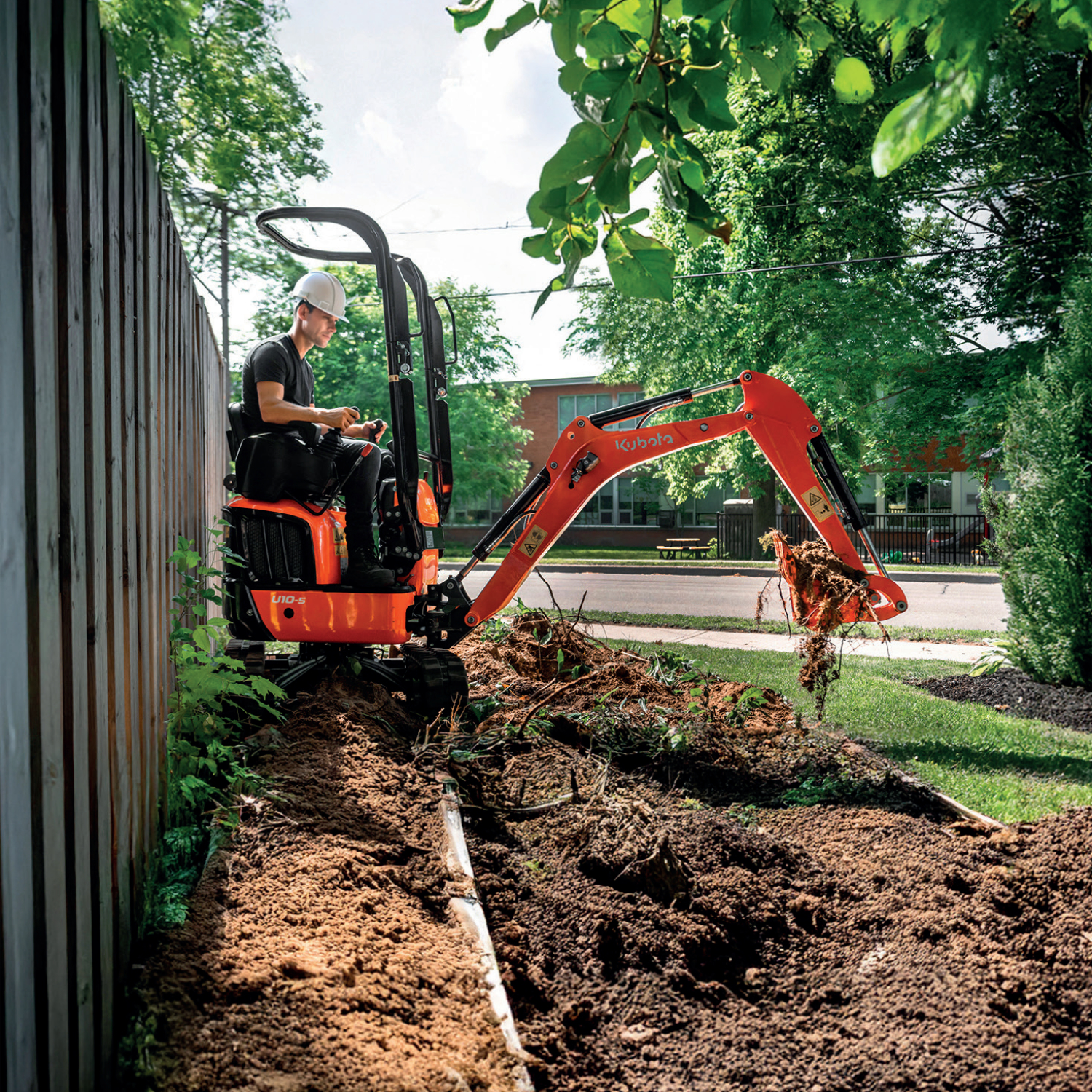

- Zero Tail Swing: Rear of machine remains within track width when rotating, eliminating collision risks near walls.

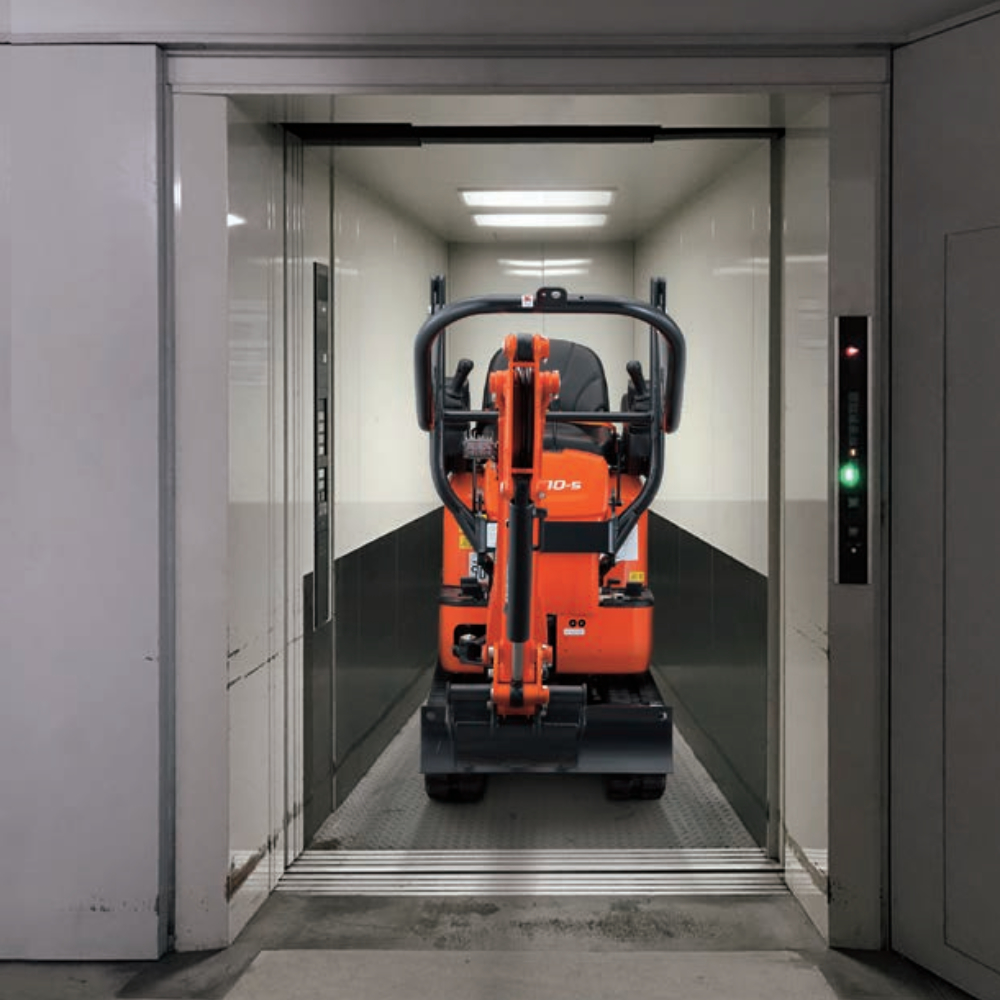

- Variable Track Width: Hydraulically retracts from 990 mm down to 750 mm to pass through narrow doorways.
- Foldable Blade Extensions: Quick-hinge blade pins adjust easily to match wide or narrow undercarriage track positions.

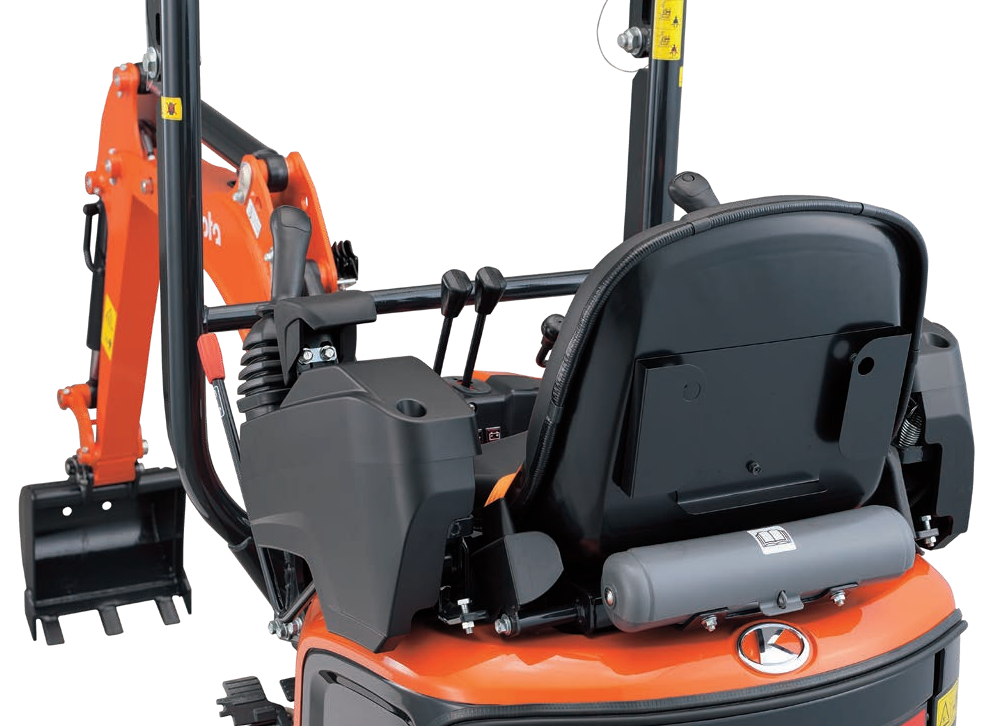

Side-Lever Hydraulic Controls
- Ergonomic Side Levers: Pilot-operated joystick controls located alongside seat for effortless, precise operation.
- Foldable ROPS Frame: Roll-Over Protective Structure folds down without tools for low-overhead clearance.
- Integrated Anti-Theft: Equipped with Kubota’s engine key immobilizer system for security on site.
Versatile Auxiliary Hydraulics
- Proportional Service Lines: Standard 2-way auxiliary hydraulic circuit to power hammers, augers, and attachments.
- Protected Hoses: Boom hydraulic lines routed internally through arm to protect against site impacts.
- Smooth Two-Speed Travel: Pedal-controlled high-speed travel mode for fast position shifts across sites.
Machine Overview Video
Model Variations & Specifications
| MODEL | DESCRIPTION & SPECIFICATIONS | PRODUCT CODE |
|---|---|---|
| U10-5 ROPS | ROPS, Rubber Tracks, Foldable ROPS, Variable Undercarriage | RA16321890 |
Technical Specifications – Kubota U10-5 Micro Excavator
| SPECIFICATION | DETAILS |
|---|---|
| Operating Weight (ROPS) | 1,045 kg |
| Engine Model | Kubota D722-E4-BH-5 (Stage V) |
| Engine Output | 10.3 HP / 7.6 kW @ 2,050 rpm |
| Machine Width (Retracted / Extended) | 750 mm / 990 mm |
| Maximum Digging Depth | 1,800 mm |
| Maximum Digging Reach | 3,380 mm |
| Maximum Vertical Digging Depth | 1,550 mm |
| Bucket Breakout Force | 1,060 kgf (10.4 kN) |
| Travel Speed (Low / High) | 2.0 km/h / 4.0 km/h |
| Auxiliary Hydraulic Flow | 21.0 L/min |
| Tail Swing Type | Zero Tail Swing |
| Anti-Theft System | Kubota Coded Key Immobilizer System Standard |
