STUBBINGS BROS LTD

OXDALE TM400 TRACTOR MOUNTED LOG SPLITTER

Out of Stock

£967.20 GBP

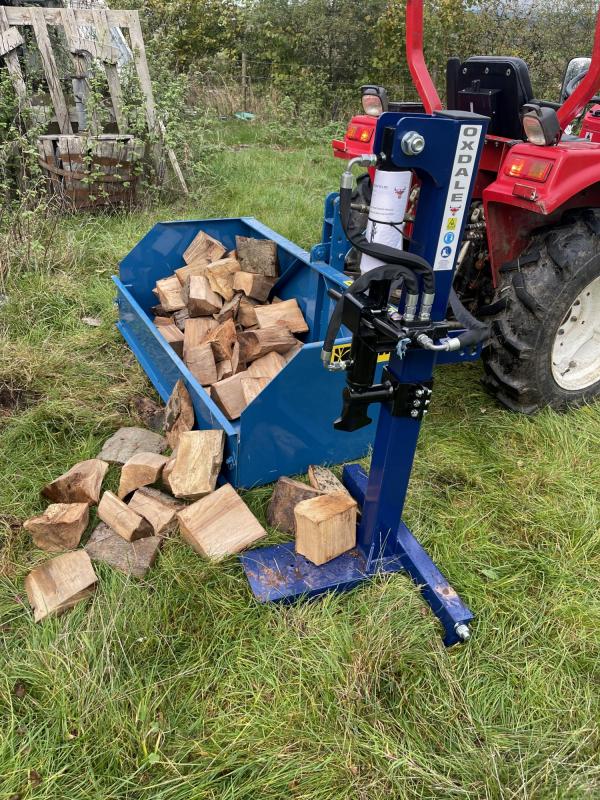

Oxdale TM400 PTO Log Splitter



The TM400 range of log splitters is suitable for most tractors. The splitter fits to a standard rear three-point linkage tractor and only requires a hydraulic power supply and a free flow return.

  • 10 tonne splitting force
  • Splits up to 45cm / 18" 14 l/m  minimum oil flow needed
  • The splitting wedge is specially forged, hardened  and has a double chamfer to give the best splitting action available on the  market
  • Suitable for all tractors with ISO CAT 1 and CAT 2 linkages;  including low HP compact tractor and large high horsepower tractors

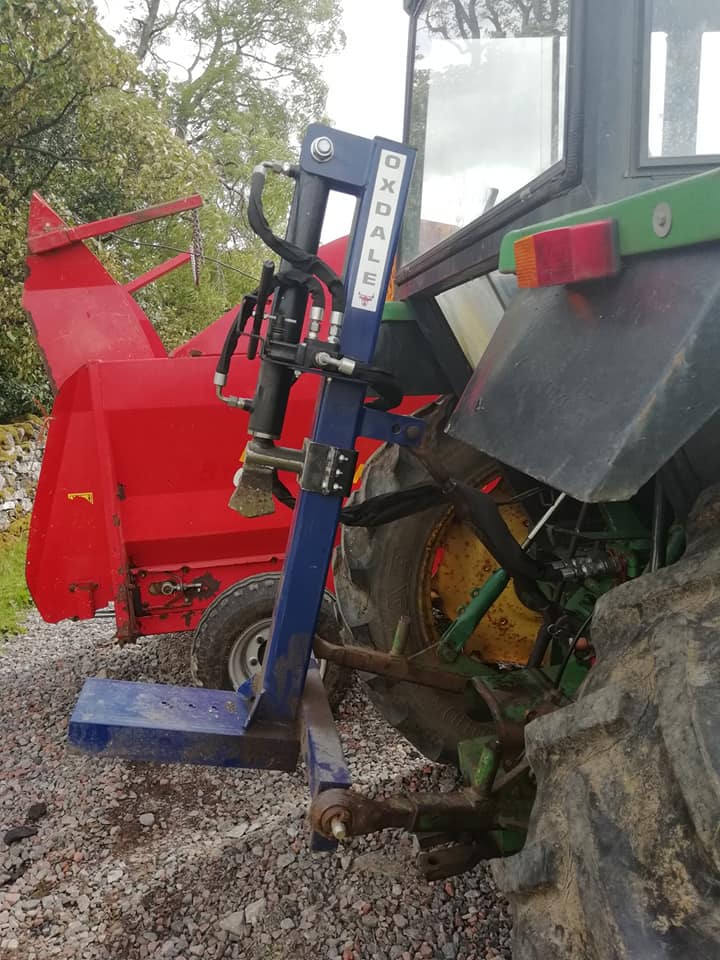

  • The unit  can be fitted on the front or rear three-point linkage
  • For added safety all  the hydraulic pipes are covered in anti-burst lagging and both hands are  required on the lever to operate the ram.
  • Lifting the lever will power the  splitting wedge through the logs and lowering the lever will retract the ram
  • Capable of splitting logs up to 18 inches high and is not limited to the  width of logs it can split
  • 20Hp minimum

The TM400 range of log splitters is suitable for most tractors. The splitter fits to a standard rear three-point linkage tractor and only requires a hydraulic power supply and a free flow return. Oxdale has been manufacturing the TM range for 12 years and now have over 10,000 units working throughout the UK and Europe.

The beauty of this log splitter allows the user to work the machine at ground level for those larger diameter rounds or it can be raised to a comfortable waist height for those easier to handle logs. The unique axe head allows a 10-ton capacity ram to be fitted which makes the splitting operation very quick. Tractor mounted hydraulic log splitter which runs off the tractor’s hydraulics.


Specifications

TM400 Standard Base
133cm Height
Base 20cm Width
Link to Link 86cm
Weight 64kg

TM400 Big Base
133cm Height
Base 60cm Width
Link to Link 86cm
Weight 80kg

Technical specs

Linkage: ISO CAT 1/2 Max operating pressure: 3625 psi/250 bar
Minimum oil flow: 14L per minute
Ram bore diameter: 60mm
Ram stroke: 400mm
Ram rod diameter: 40mm


SKU:.NOX-TM400
...
