STUBBINGS BROS LTD

MERLO P72.10 PLUS TELEHANDLER

Out of Stock

Contact us for a price

Enquire

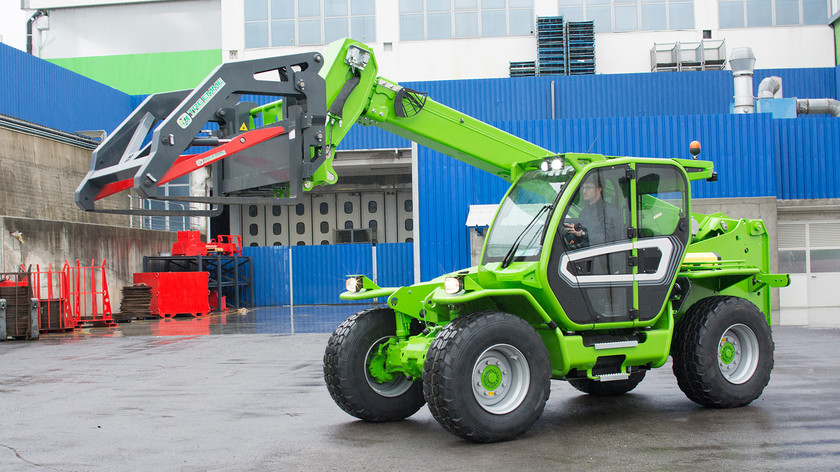

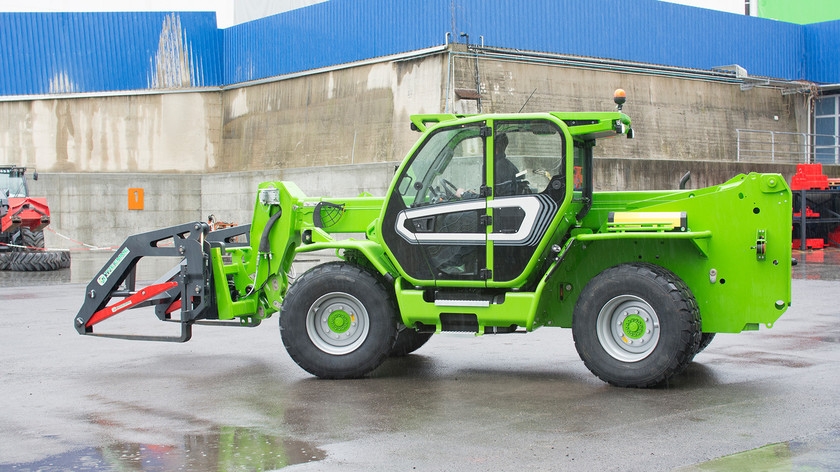

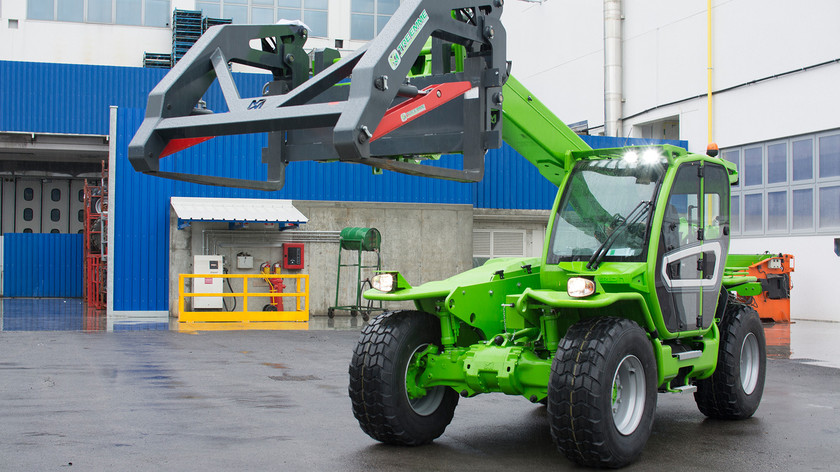

MERLO P72.10 PLUS



The Panoramic 72.10PLUS has been designed to work in the most demanding conditions, where performance in terms of lifting capacity and engine power make all the difference.

Compact dimensions, increased manoeuvrability and versatility of use: the new construction concept allows you to customise the models according to operational needs, consequently offering the widest construction range with tailor-made solutions for the customer.



MODEL FEATURES

This Panoramic has a maximum capacity of 7200kg for a lifting height of 9.6 meters.
The 72.10 PLUS with 101 HP Tier IV engine, is combined with the Eco Power Drive (EPD) electronic management that reduces the engine rpm where high power is not required.

PLUS versions are equipped as standard with full MCDC (Merlo Dynamic Load Control) coupled with a large 10.1” colour display and attachment recognition, showing machine’s geometric configuration, boom extension, angle and handled load.

The Tilt Correction System, integrated into the chassis as standard, can correct the lateral inclination by 8% on each side, reaching 24% on sloping terrain operating in conditions of maximum safety.

The exclusive Boom Side Shift allows the load to be positioned without further manoeuvring, saving time and improving machine’s productivity: the system allows for a boom side-shift up to 500 mm.

The standard cab gives easy access, astounding space with great visibility: generous in dimensions, the cab is mounted on Silent Block, which drastically reduce vibrations, guaranteeing maximum comfort and visibility.

The 72.10 Plus comes with standard Towing Hook, Roof Wiper, Lights on cab.

Engine: Deutz 3.6 75Kw/102Hp Stage IV
Transmission: Hydrostatic
Hydraulic system: Load Sensing 104 l/m 250 Bar
Electronic Joystick
CDC: full Dynamic Load Control

  • Lift Capacity 7200kg
  • Lift Height 9.6m
  • Frame Levelling + Boom Side Shift
  • Eco Power Drive
  • Hydrostatic Transmission + Merlo Dynamic Load Control

    View Merlo 72.10 Brochure



    ATTACHMENTS

    The widest range of attachments on the market, designed and developed by Merlo. This ensures the reliability and maximises the performance and comfort of the telehandlers produced by Merlo. The purpose is to make your work easier and more productive, with advanced technical solutions and a never ending research. For this Merlo is also able to produce special attachments for the most demanding customers. To make the most of Merlo telehandlers in every field, various ranges of equipment dedicated to different applications, we have selected the top most preferred attachments.

    Please download their latest attachment brochure below to see the full range.


    View Construction Attachment Brochure  View Agricultural Attachment Brochure
SKU:.NP72.10 PLUS
...
