Kellfri Log cutter and splitter, electric-powered

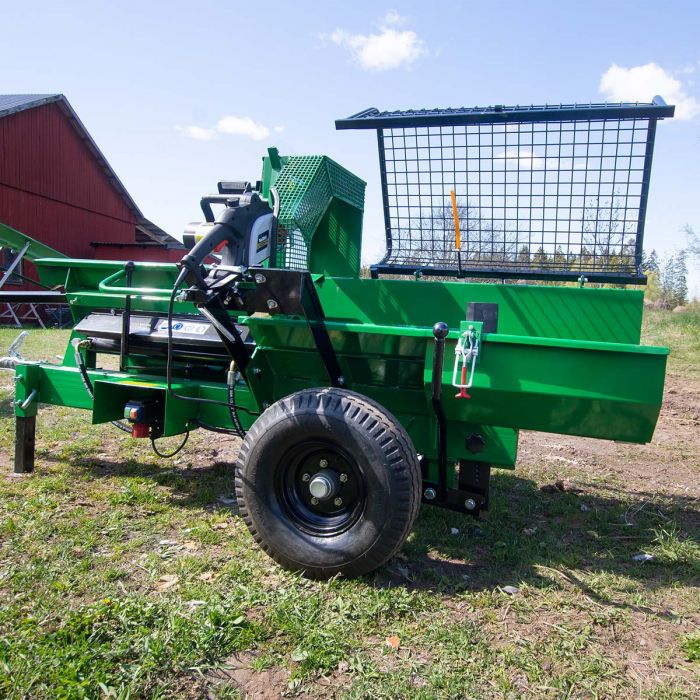

Kellfri's log cutter and splitter, a portable, high-capacity firewood machine.

• Excellent safety with protective cage over the cutting area and two-handed safety control on electrical cutter
• Splitting force 7 tonnes
• Substantial sawdust cleanout grate at the splitting axe ensures clean-cut wood
• 2-way or 4-way splitting axe
• Silent operation, good working environment

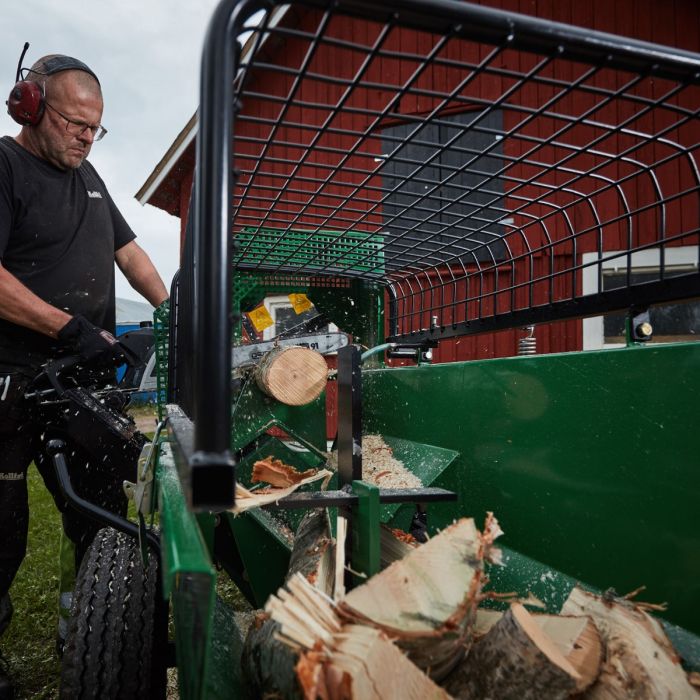

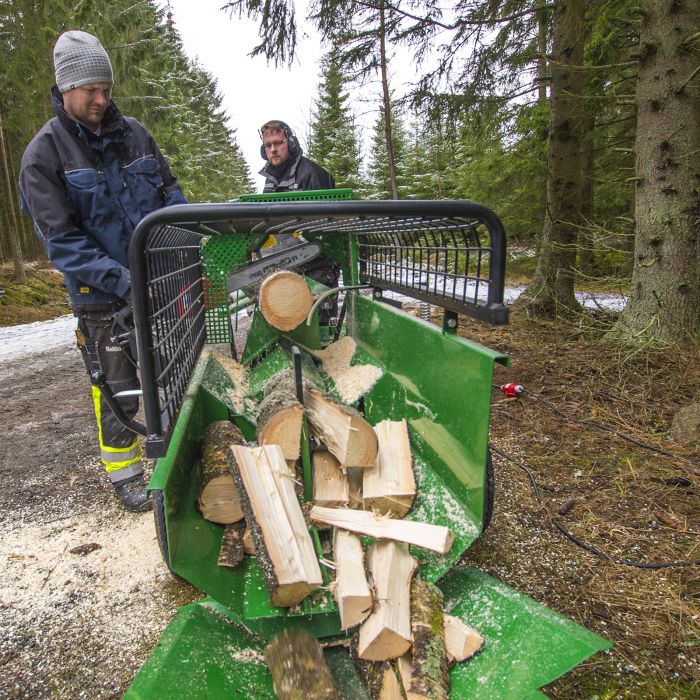

The log cutter and splitter does the job of cutting and splitting your firewood in a safe and effective way. The firewood is cut with a 2.4 kW electric chainsaw with 16” bar then drops down into the splitting track, the design of which ensures centred splitting even with smaller logs.

A 4 kW electric motor runs the hydraulic pump that supplies the splitting cylinder with the required force to split wood in two or four pieces. The machine requires a 16 Amp power socket.

The two-handed safety control on the electric cutter and the large safety cage covering the splitting track ensure safe operation. The splitting process is interrupted if the cage is opened. Cuts dimensions up to 28 cm and splitting lengths up to 60 cm.

The electric chainsaw has automatic oil lubrication with a sight glass for measuring the oil level. Thanks to its top splitting force and portability it is a very flexible and affordable firewood machine. Its portability makes the machine suitable as a group purchase for instance by neighbours. Characteristic of Kellfri's machines is their excellent safety, stable construction and smart, affordable solutions.

ELECTRICAL POWER 3-phase. 400 V
WHEELS 600-9
HYDRAULIC OIL TANK 35 l
CHAIN PITCH 3.25
SPLITTING FORCE 7 tonnes
SPLITTING LENGTH 150 - 600 mm
L X W X H 3000 x 1100 x 1250 mm
MOTOR POWER 4 kW
OIL TANK 26 l/min
FUSES 16 amp
RPM 1.400 rpm

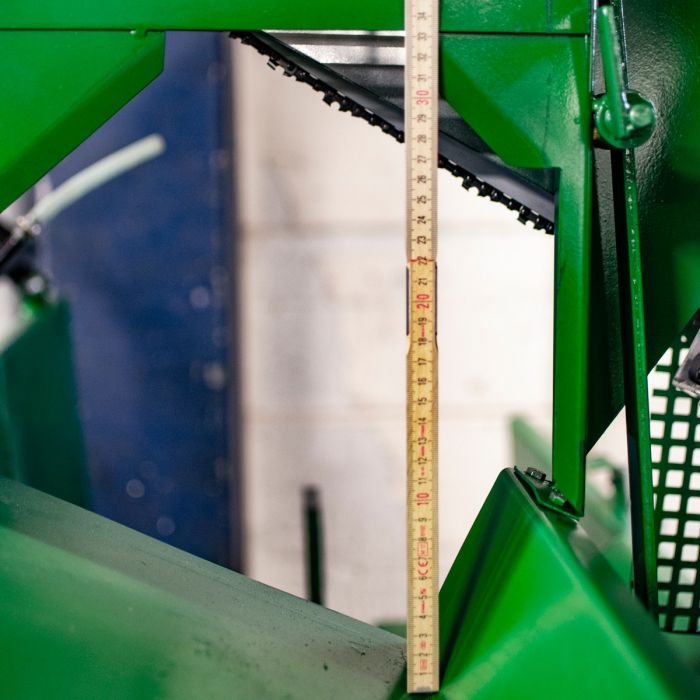

TIMBER DIAMETER MAX. 280 mm
