CUB CADET XT3 QS137 54" SIDE-DISCHARGE PETROL RIDE ON MOWER

Cutting width : 137cm (54'')
Transmission : Hydrostatic, All-Ground Traction System
Rated power kW/min -1 : 16,2 / 3000
Mowing area in m 2 /h: 11000
Grass bag capacity (l)  : Optional 210

XT3 SERIES

Designed to meet the toughest and most demanding conditions, driven by true power packages and equipped with ultra-strong components - the Cub Cadet XT3 are the ultimate lawn tractors. Now with TIGHT TURN xTREME, the smallest turning radius on the market at just 17cm for unbeatable efficiency even in confined spaces. The XT3 range are brimming with power, capable of mowing dense grass and transporting larger loads including a mechanical differential lock that provides optimum traction however tough the terrain.

XT3 QS137 137CM / 54"

The Cub Cadet XT3 QS137 is a versatile and agile lawn tractor, designed for the toughest, most demanding conditions. The mechanical differential lock provides the optimum traction on all terrains, powered by a strong V-Twin Kawasaki engine delivering superior power and high-torque and benefits from great manoeuvrability with a narrow turning radius of just 17cm, the smallest on the market.

ALL-GROUND TRACTION

Optimum traction, however tough the terrain – thanks to the mechanical differential lock.

GRASS BAG WITH ELECTRIC BAG LIFT

At the touch of a button, the grass catcher of the XT3 QR106e lifts up and tips the cuttings out.

LARGEST GRASS BAG ON THE MARKET

Vast 360 litre capacity ensures maximum efficiency.

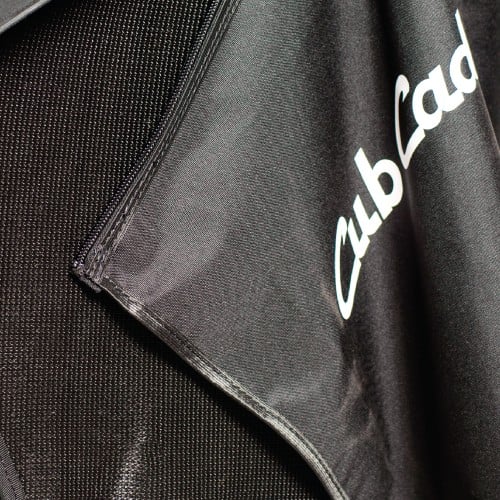

ANTI-DUST SYSTEM

XT3 rear discharge models come with a zip on multi-layer dust apron which protects you from swirling grass and dust.

WELDED MOWING DECK

For high durability and robustness available on the XT3 QS137.

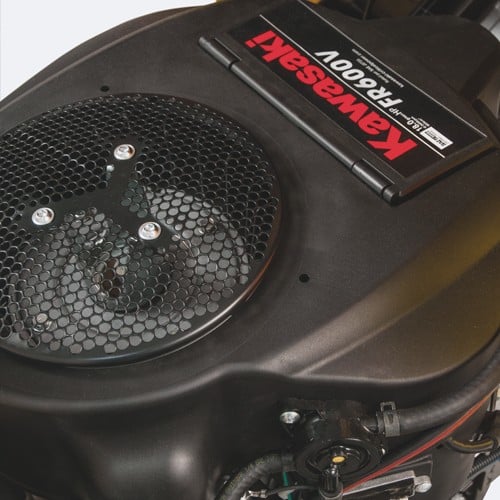

POWERFUL KAWASAKI V-TWIN ENGINE

Two-cylinder engine for demanding terrain with particularly quiet running and low fuel consumption.

---

SPECIFICATIONS

ENGINE XT3 QS137
Engine : Kawasaki
Engine displacement (cm3) : 726
Rated power (kW/min-1) : 16,2 / 3000
Cylinders : V-TWIN dual cylinder
Fuel tank capacity(l) : 11,4

DRIVE SYSTEM
Transmission : Hydrostatic, All Ground Traction System
Air speed (max) : Infinitely variable (f/r)
Control : Foot pedal control
Cruise Control : Standard

CUTTING SYSTEM
Mowing area (m2/h) : 11000
Cutting width : 137cm (54'')
Cutting height : 25-100 mm
Number of blades : 3
Deck Engagement : Electric PTO
Deck height positions : 12 positions
Deck wheels : 4 balls deck wheels
Wash nozzle / mulching plug : Standard / Standard

DISCHARGE SYSTEM
Grass bag capacity (l) Optional 210/(19A30018100)
Bag lever / hardtop : – / –
Grass Deflector : – / Standard

FRAME
Front axle : Heavy-duty cast-iron
Front bumper : Bull Bar
Turning radius (cm) : TIGHT TURN xTREME 17cm
Wheels (front/rear) (Zoll) : 16 x 6.5-8 Turf Saver / 22 x 9.5
Wheel bearings : Ball bearings
Frame : Fully robotically-welded frame

ELECTRIC
Headlights : LED

COMFORT
Seat type : High Back Seat Cub Cadet/Armrests
Seat adjustment : Lever, angled,10 slide
Steering wheel : Ergo Soft-Grip
Tool box / Cub holder : Standard / Standard
12V Plug
Mow in reverse : Standard
Battery charger : –

DIMENSIONS
Noise values (dB) : 93 / 103 / 105
Vibration value body (K-factor) (m/s2) : 1 / 0,5
Vibration value hand-arm (K-factor) (m/s2) : 5 / 1,5
Dimensions (L / W / H) (cm) : 197 / 167 / 110
Weight net (kg) : 270
