Cutting width : 127cm (50'')
Transmission :
Hydrostatic, All-Ground Traction System
Rated power
kW/min -1 : 15,7 / 2,8
Mowing area in m 2 /h: 10000
Grass bag capacity (l) : Optional 210
EAN: 4008423872545
MODEL NO :
14CIA5CQ603
XT3 SERIES
Designed to meet the toughest and most demanding conditions, driven by
true power packages and equipped with ultra-strong components - the Cub Cadet
XT3 are the ultimate lawn tractors. Now with TIGHT TURN xTREME, the smallest
turning radius on the market at just 17cm for unbeatable efficiency even in
confined spaces. The XT3 range are brimming with power, capable of mowing dense
grass and transporting larger loads including a mechanical differential lock
that provides optimum traction however tough the terrain.
XT3 QS127 127CM / 50
The XT3 QS127 lawn tractor features a 127 cm / 50”
cutting deck width with 12 deck height positions, electric PTO deck engagement
and a cutting height range from 25mm to 100mm. This side discharge lawn tractor
is perfect for larger lawns and small paddocks with the ability to cut up to
10,000 m² per hour. The Kawasaki V-Twin engine is coupled with a smooth
hydrostatic gearbox delivering power, performance and a smooth ride. A
robotically-welded steel frame with e-coating corrosion defence system ensures
longevity and a heavy-duty cast-iron front axle and mechanical differential lock
on the All Ground Traction system ensures the optimum traction on tough and
sloping terrain. Also featured is the RevTek system enabling mowing in reverse
and it comes complete with a mulching kit and grass deflector. Now with TIGHT
TURN xTREME at just 17cm, the smallest turning radius on the
market.
ALL-GROUND TRACTION
Optimum traction, however tough the terrain – thanks to the mechanical differential lock.

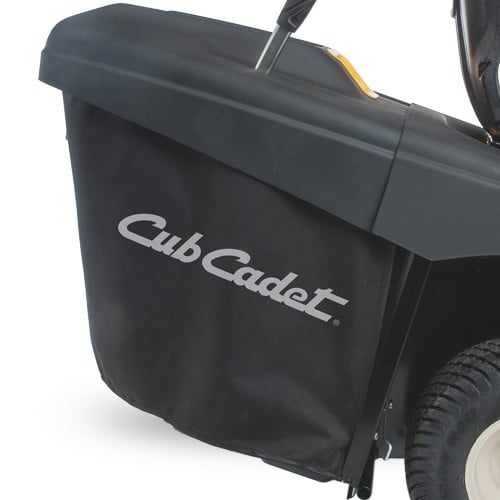

GRASS BAG WITH ELECTRIC BAG LIFT
At the touch of a button, the grass catcher of the XT3 QR106e lifts up and tips the cuttings out.
LARGEST GRASS BAG ON THE MARKET
Vast 360 litre capacity ensures maximum efficiency.

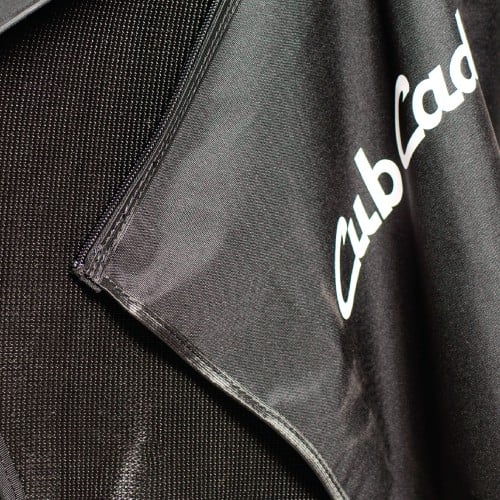

ANTI-DUST SYSTEM
XT3 rear discharge models come with a zip on multi-layer dust apron which protects you from swirling grass and dust.

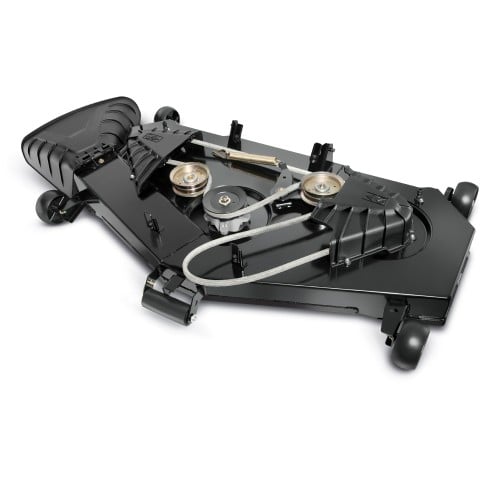

WELDED MOWING DECK
For high durability and robustness available on the
XT3 QS137.

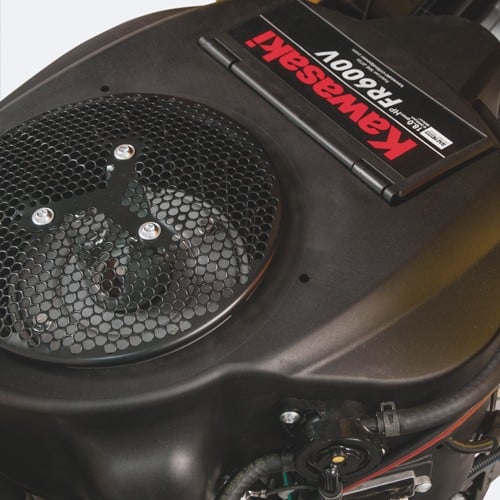

POWERFUL KAWASAKI V-TWIN ENGINE
Two-cylinder engine for demanding terrain with particularly quiet running and low fuel consumption.
SPECIFICATIONS
ENGINE XT3 QS127
Engine : Kawasaki
Engine
displacement (cm3) : 726
Rated power (kW/min-1) : 15,7 / 2,8
Cylinders : V-TWIN dual cylinder
Fuel tank capacity(l) : 11,4
DRIVE SYSTEM
Transmission : Hydrostatic, All
Ground Traction System
Air speed (max) : Infinitely variable (f/r)
Control : Foot pedal control
Cruise Control : Standard
CUTTING SYSTEM
Mowing area (m2/h)
: 1000
Cutting width : 127cm (50'')
Cutting height : 25-100 mm
Number of blades : 3
Deck Engagement : Electric PTO
Deck height
positions : 12 positions
Deck wheels : 4 balls deck wheels
Wash
nozzle / mulching plug : Standard / Standard
DISCHARGE
SYSTEM
Grass bag capacity (l) Optional 210/(19A30018100)
Bag lever /
hardtop : – / –
Grass Deflector : – / Standard
FRAME
Front axle : Heavy-duty cast-iron
Front
bumper : Bull Bar
Turning radius (cm) : TIGHT TURN xTREME 17cm
Wheels
(front/rear) (Zoll) : 16 x 6.5-8 Turf Saver / 22 x .5
Wheel bearings
: Ball bearings
Frame : Fully robotically-welded frame
ELECTRIC
Headlights : LED
COMFORT
Seat type : High Back Seat Cub Cadet/Armrests
Seat adjustment :
Lever, angled,10 slide
Steering wheel : Ergo Soft-Grip
Tool box / Cub holder
: Standard / Standard
12V Plug
Mow in reverse : Standard
Battery
charger : –
DIMENSIONS
Noise values (dB)
: 93 / 103 / 105
Vibration value body (K-factor) (m/s2) : 1 / 0,5
Vibration value hand-arm (K-factor) (m/s2) : 5 / 1,5
Dimensions (L /
W / H) (cm) : 197 / 155 / 110
Weight net (kg) : 260
