OXDALE PTO400 PTO DRIVEN LOG SPLITTER

Out of Stock

Contact us for a price

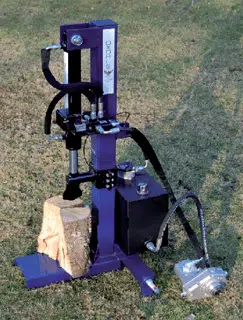

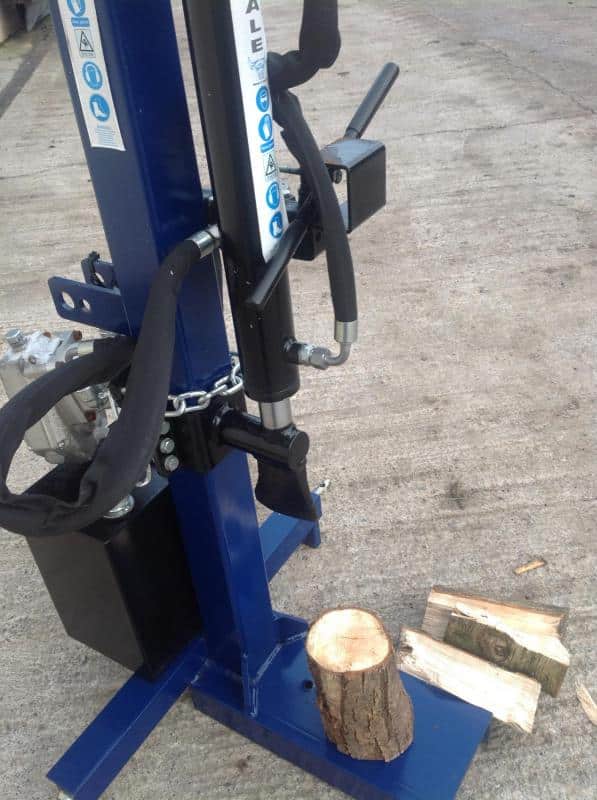

PTO400 Log Splitter



The Oxdale PTO range of log splitters are suitable for most tractors. The splitter fits to a standard rear three point linkage tractor and is perfect for tractors that don’t have a built in hydraulic system, a free flow return or are low horsepower.

  • PTO driven
  • 10-ton splitting force
  • Specially designed, forged and hardened axe head
  • Double chamfered axe head to give the best splitting action available on the market
  • Suitable for all tractors with ISO cat 1 and cat 2 linkages, including low horsepower compact tractor and large high horsepower tractors
  • The PTO range allows tractors with low hydraulic capabilities to run a  log splitter efficiently
  • The splitter can be fitted on the front or rear  three-point linkage
  • Suitable for low horsepower tractors
  • For added safety, the hydraulic pipes are covered in anti-burst lagging
  • Both hands are required on the handles to operate the ram
  • Capable of splitting logs up to 18 inches high and is not limited to the width of logs it can split


The PTO400 range of log splitters is suitable for most tractors. The splitter fits to a standard rear three point linkage tractor and is perfect for tractors that don’t have a built in hydraulics system, a free flow return or are low horsepower.


Specifications

Min horsepower: 10
Weight: 85kg
Linkage: ISO CAT 1/2
Max operating pressure: 4780 psi/330 bar
Max PTO speed: 540 rpm
Ram bore diameter: 60 mm
Ram stroke: 400 mm
Ram rod diameter: 40 mm


SKU:400
...
