STUBBINGS BROS LTD

MERLO M500DM CINGO TRACKED BARROW

In Stock - Last one!

£6,900.00 GBP


MERLO CINGO M500 OVERVIEW



The CINGO multi-purpose Transporters are compact and easy-to-handle machines designed for working in tight spaces. The low centre of gravity ensures maximum lateral stability on slopes and the tracks put less pressure on the ground, providing greater adherence on uneven and irregular terrains.

The M500 model is an innovative, manageable and safe tool carrier, which offers top-class features, such as orbital hydraulic motors for maximum traction and the “overcenter” valve, which allows uphill/downhill speed control with the machine loaded. Among the easy and intuitive controls are the parking brake with manual control and an optional digital hour metre and tachometer display.

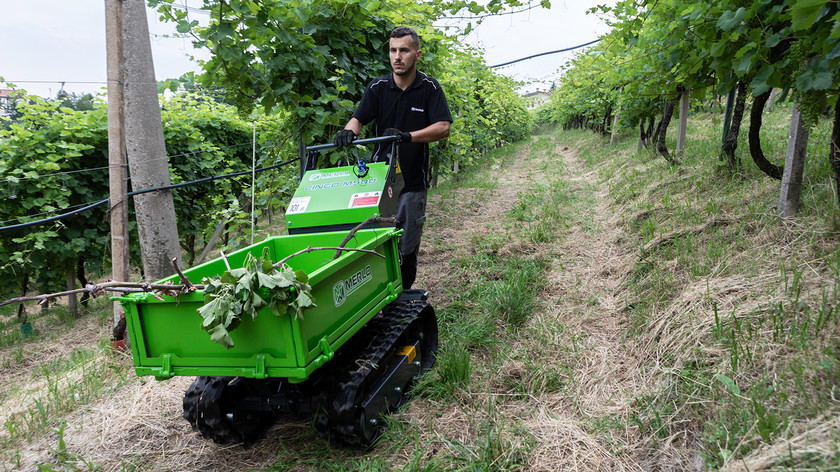

The Cingo Transporter M500 can be used in all sectors for the handling of material in confident spaces and on steep and uneven terrain. With a total width of 690 mm, it transports the materials with ease, passing through doors and gates and in the narrowest passages without any problems.



This mini dumper is available in 3 versions:

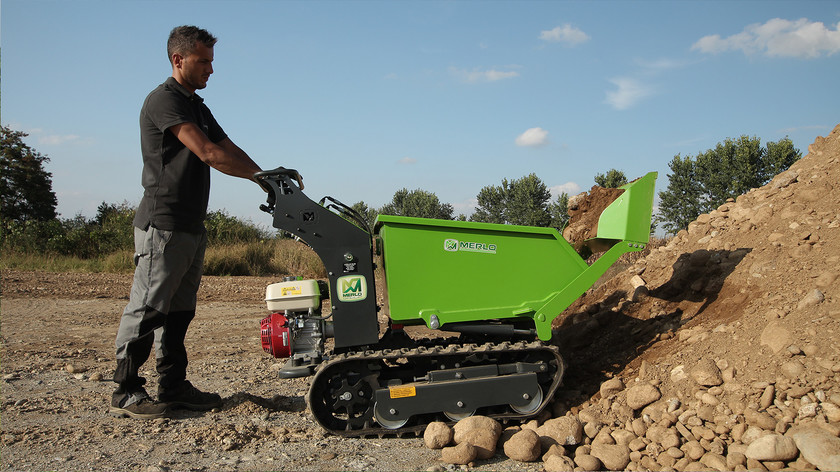

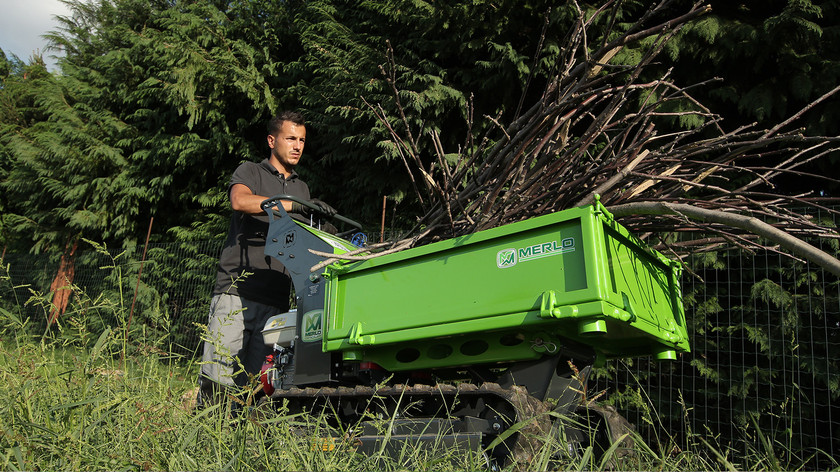

  • The M500 DM comes as standard with TIPPER DUMPER: ideal for transporting loose material and for precision unloading.
  • The M500 DP comes as standard with SELF LOADING DUMPER: the advantage of the front loader with hydraulic lifting for loading material into the dumper.
  • The M500 C comes as standard with TIPPER DUMPER WITH SIDES: the versatility of a tipper dumper with sides that when required become an integral part of the load bed, increasing its surface.


New ergonomic driving position, easy and simple to manoeuvre and the sturdy and solid chassis have been improved on the new range.

This machine is a handy, compact and safe transporter, which offers superior class features.

With orbital hydraulic motors for maximum traction, the machine offers greater performance for a better adherence and drive comfort: the robust rubber tracks exert low specific pressure on the ground. The hydraulic transmission with the overcenter valve allows maximum speed control on slopes, increasing safety when ascending and descending. The easy to use controls include the parking brake with manual control.

MAIN MACHINE FEATURES

Capacity 500kg
Length DM 1560 mm
Length DP 1416 mm
Length C 1471 mm
Width 690 mm
Height: 1155 mm
Driving position: on the ground
Engine: Honda 5.5hp, Petrol, 1 cylinder, Stage V
Max speed (km/h): 3.5
Transmission: Hydraulic
Transmission levers: Hydraulic
Service Pump: Gear 3.2cc
Flow rate (l/min): 12
Pressure (Bar): 160
Starting: Manual recoil
Manual parking brake



View CINGO Brochure




SKU:.NM500DM
...
