KUBOTA M4003, THE PROFICIENT RELIABLE ALL-ROUNDER

The Kubota M4003 is the perfect all-rounder for farm work requirements. Thanks to reliable and proven technology, you can rely on the M4003 in all conditions.

Exceptionally powerful
Kubota's modern 4-cylinder engines provide high levels of power.

Smooth gear shifting
The fully synchronized transmission, with optional powershift enables smooth shifting.

Comfortable working environment
The Ultra Grand Cab II is extremely spacious and comfortable.

Particularly strong
The hydraulics provide full lifting power for all your work requirements.

Perfectly matched
The M4003 agricultural tractor and the LA1365 front loaders together provide maximum versatility and efficiency.


Model : M4-063 / M4-073
Range : ROPS or Cab / ROPS
Rated power(ECE R 120) : 66 hp/ 49 kW / Cab 74 hp/ 55 kW
Displacement/No of cylinders : 3,331 cm3 / 4 /  3,331 cm3 / 4


Engine

• Kubota's 66 hp and 74 hp 4-cylinder engines are powerful, clean and quiet


• The 3.3-litre V3307 series CR-T engines feature high-pressure fuel injection, to deliver maximum power and torque


• Optimised performance and torque curves mean less noise and wear, as well as lower fuel consumption


• With the constant speed controller, you can control the engine speed very precisely


• With the engine speed memory, you can store speed settings for repetitive operations

Transmission

• The M4003, gives you the choice between two optimally matched transmissions: 18F/18R or 36F/36R.

• Smooth, comfortable shifting is guaranteed with all transmission variants.

• With the new electro-hydraulic shuttle shift, you can select reverse with ease.

• The 40 km/h transmission with Eco-Drive enables faster and quieter driving with lower fuel consumption.

• The four-wheel drive can be simply switched on and off at the push of a button without stopping the tractor.

Hydraulics

• The rear hydraulic lift on the M4003 allows even the heaviest of implements to be lifted very easily thanks to its 2,500 kg lifting force.


• Two hydraulic SCD auxiliary hydraulic outlets (a third is optional) enables an easier operation of the implements.


• The power take-off of the M4003 can also be turned on and off easily from a switch at the rear


• Optional mechanical or electric rear hitch control increases the
  comfort

Cab

• Enjoy the size and comfort of the extra wide and extremely spacious Ultra Grand Cab II


• The controls are ergonomically arranged so that you can concentrate fully on the work at hand


• You can see the fully raised front loader directly through the glass roof hatch


• The sophisticated heating and air conditioning system in the cabin guarantees a comfortable working environment in all weather conditions


• As an added option the M4003 is also available as a ROPS version with a roll bar

Precision Farming

• Use the IsoMatch Tellus monitors to upgrade your M4003 to an ISOBUS tractor


• Track everything you've done in the field, thoroughly and accurately


• The part width section control and the area-specific application option offers additional cost savings opportunities

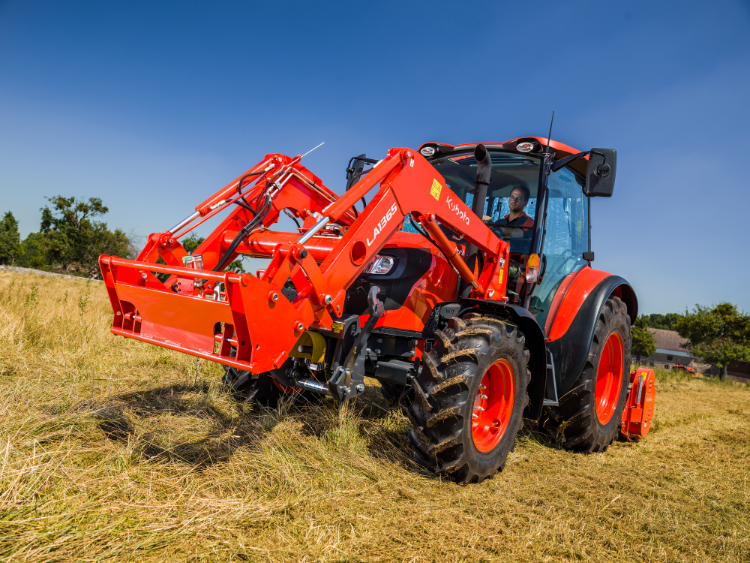

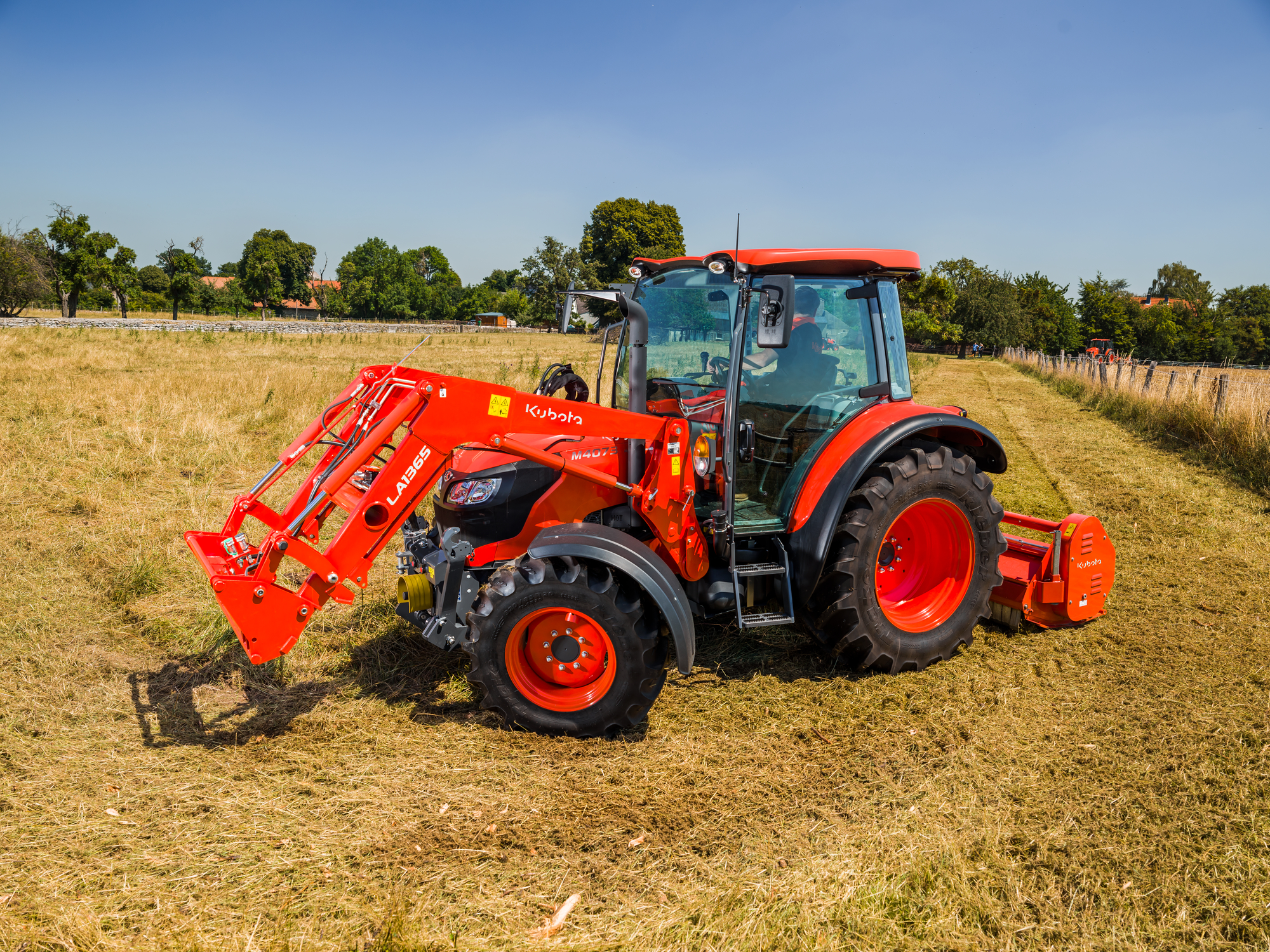

Front Loader

• The M4003 and Kubota’s LA1365 series front loaders together provide maximum versatility and efficiency


• The front loader can quickly be mounted and dismounted without any tools


• Optional hydraulic self-levelling of the front loader ensures a constant loader angle for safe and precise operation.
