STUBBINGS BROS LTD

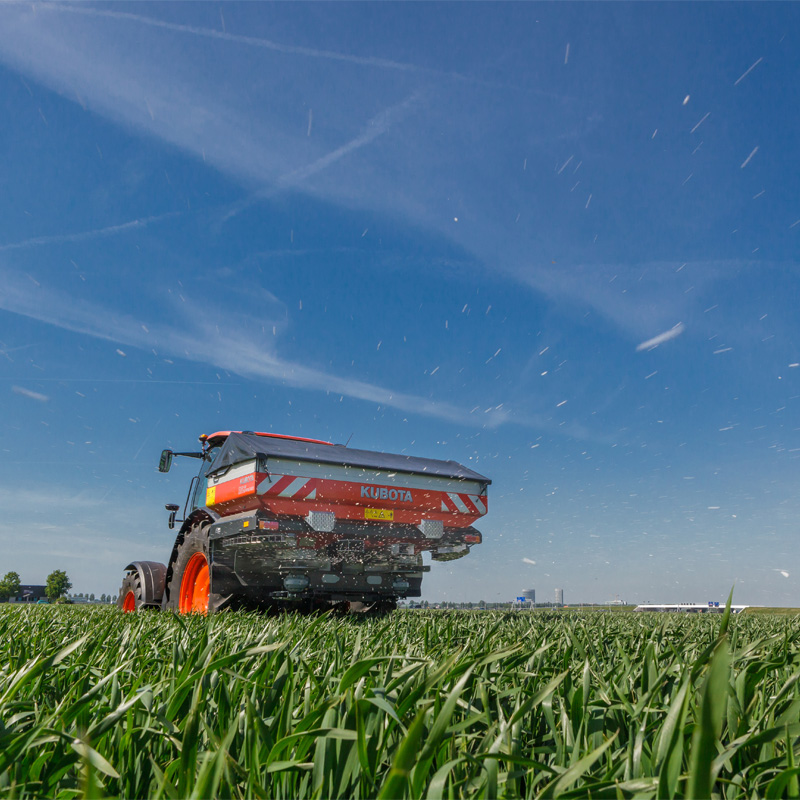

KUBOTA DSX-W SPREADERS

Out of Stock

Contact us for a price


High tech weighing with high capacity.

The W for Weighing!

The DSX-W is the top of the range model. This ISOBUS 11783 compatible weighing spreader is equipped with an unique reference sensor. The FlowPilot dashboard on each spreading disc ensures simple and quick setting or adjustment. Different hopper capacities are available: two different basic hoppers of 1.500 and 1.875 litres and they can be increased with maximal 3 hopper extensions up to 3.450 and 3.900 litre capacity! Working widths from 12 up to 54m are possible. The DSX-W can be operated with the Kubota IsoMatch Tellus or IsoMatch Tellus GO.

The Advantages:

  • RotaFlow spreading system
  • Fully automatic weighing  system with unique reference sensor
  • FlowPilot for quick and easy  adjustment
  • Easy border spreading systems are available
  • ISOBUS 11783 compatible for easy plug and play
  • Possible in combination with IsoMatch GEOCONTROL

Technical specifications

Model (275 cm) | DSX-W1500 | DSX-W2150 DSX-W2800
Hopper capacity (l) 1500 2150 2800
Filling height (cm) 110 129 148
Width (cm) 275 275 275
Filling width (cm) 269 269 269
Empty weight (kg) 665 695 725
Spread width (m) 12-45 (54)* 12-45 (54)* 12-45 (54)*
Output (kg/min) 10-320 10-320 10-320

Model (290 cm) DSX-W1875 DSX-W2550
Hopper capacity (l) 1875 2550
Filling height (cm) 120 139
Width (cm) 290 290
Filling width (cm) 284 284
Empty weight (kg) 705 735
Spread width (m) 12-45 (54)* 12-45 (54)*
Output (kg/min) 10-320 10-320

*Depending on fertiliser type and type of vanes





View Kubota Range Brochure


SKU:.NDSX-W
...
