Kubota DSX Spreaders
The high capacity model.
The X for larger working
widths

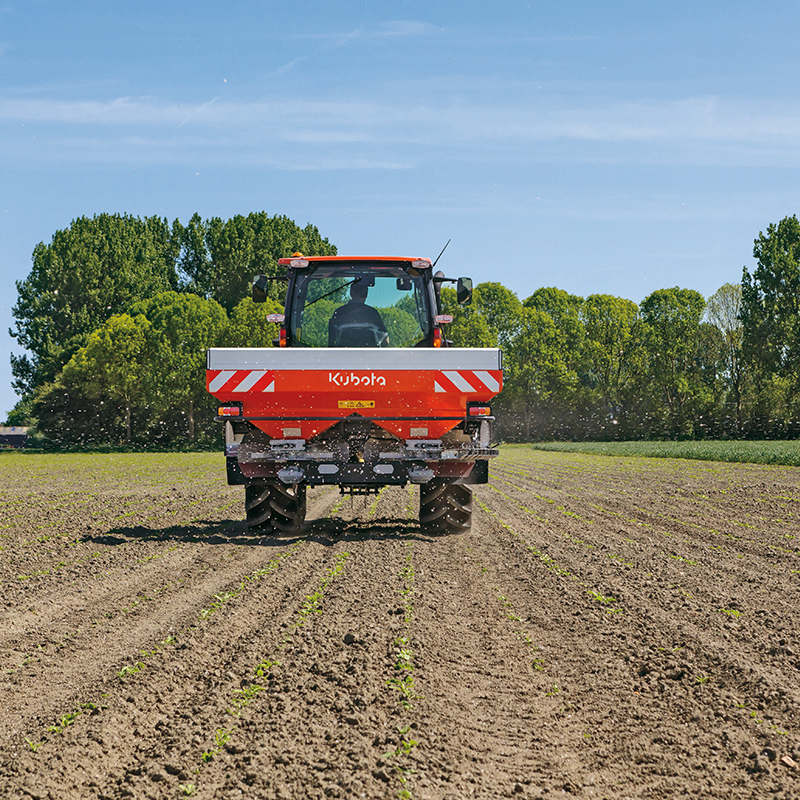

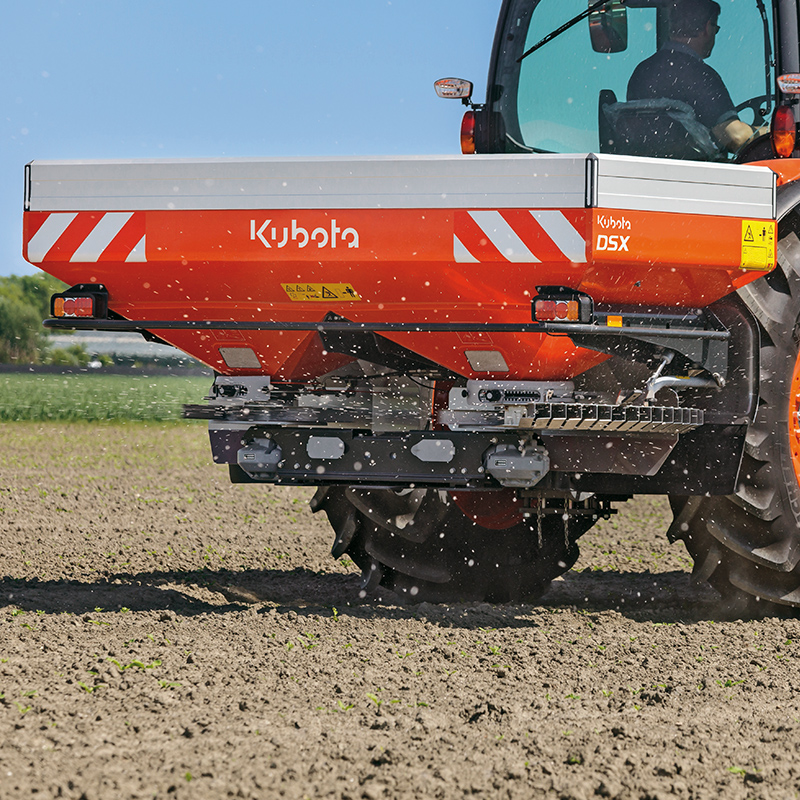

The DSX is the high capacity model of the Kubota spreader
range. The heavy duty construction of the DSX makes it possible to carry up a
maximum of 3.450 or 3.900 litres of fertiliser with 3 extension rims. Easy
setting and adjustment can be done with the FlowPilot on each spreading disc.
An innovative drive line to each disc ensures gentle agitation due to the
“slow rotating” agitator system, which runs at 15% of the spreading disc
speed. Both discs can be shut off independently to spread half the working
width, essential for preventing lodging in tapering headlands.
The Advantages:
- RotaFlow
spreading system
- FlowPilot for quick and easy adjustment
- Easy border spreading systems available
- Standard and optional equipment available to fulfil your
requirements
- Comfort Control II to operate the spreader from the closed tractor
cab
Technical specifications
Model | DSX1500 (270 cm)| DSX2150 | DSX2800
Hopper capacity (l) | 1500 | 2150 | 2800
Filling height (cm) | 110 | 129 | 148
Width (cm) | 275 | 275 | 275
Filling width (cm) | 269 | 269 | 269
Empty weight (kg) | 495 | 525 | 555
Spread width (m) | 12-45
(54)* | 12-45 (54) | * 12-45 (54)*
Output (kg/min) | 10-320 | 10-320 | 10-320
Model | DSX1875
290cm | DSX2550
Hopper
capacity (l) | 1875 | 2550
Filling height (cm | ) 120 | 139
Width (cm) | 290 | 290
Filling width (cm) | 284 | 284
Empty weight (kg) | 530 | 565
Spread width (m) | 12-45
(54)* | 12-45 (54)*
Output
(kg/min) | 10-320 | 10-320
*Depending on fertiliser type and type of vanes
