Kubota DM3000 Series Mounted Disc Mower

Centre mounted disc mowers.

Kubota DM3000 series mounted disc mower range boasts an extensive working range of 2.8-4.0m, with corresponding weights ranging from 810-940 kg, which means the machines can be operated with tractors starting from only 50 hp, making these very attractive machines for farmers with smaller tractors, who still needs to cut substantial areas. Paired with the DM4032 front mounted machine the joint working width is up to an amazing 6.8m.

For greater operator comfort, ground pressure of the large suspension spring is set hydraulically from the tractor cab. On the hydraulic version the tension on the large suspension spring, which controls the ground pressure, is adjusted hydraulically, to increase or lower pressure.

The Advantages:

• Available with hydraulic spring adjustment.
• NonStop BreakAway

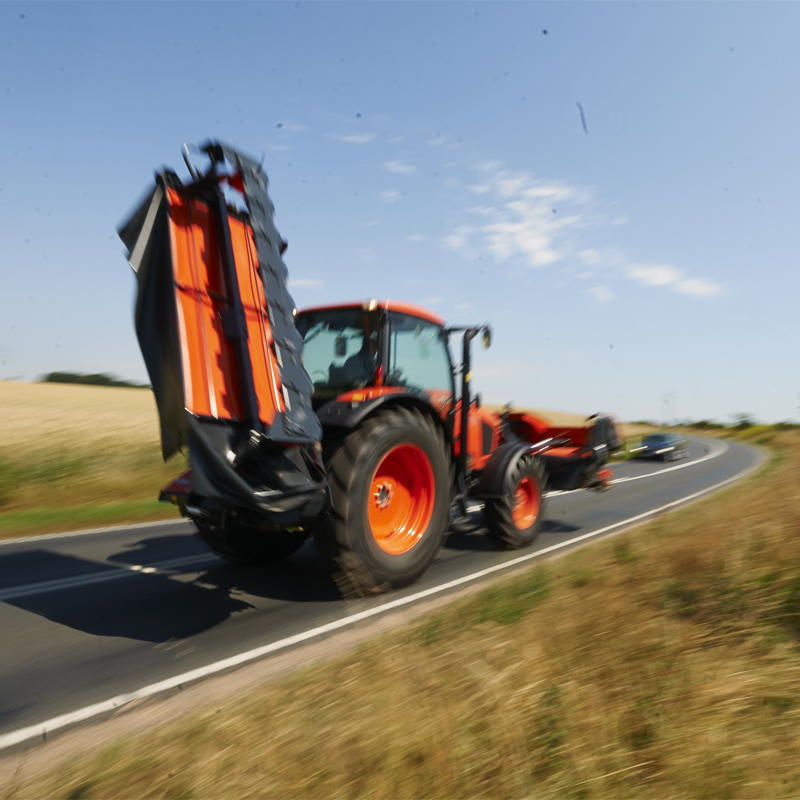

• Up to 125° vertical transport solution
• Centre suspension
• 540/1000 rpm gearbox
• Fully welded Kubota cutterbar with triangular discs.

Technical specifications

Model | Working Width |  Weight |  Power Req. Min.
DM3028 |  2.80m |  810kg |  37/50 kW/hp
DM3032 |  3.20m |  840kg |  40/50 kW/hp
DM3036 |  3.60m |  880kg |  44/60 kW/hp
DM3040 |  4.00m |  940kg |  51/70 kW/hp
