JANSEN BSF-13 STUMP GRINDER
INCLUDES
FREE SHIPPING!
(Scotland &
Ireland will incure an additional
shipping surcharge, for a
complete
shipping cost to these locations please
contact us)
STOCK
UNITS ARE HELD AT OUR YARD IN CRATE FORM, AS A RESULT ASSEMBLY AND DESPATCH
ON THESE UNITS IS 1-2 WEEKS FROM DATE OF ORDER. PLEASE BEAR THIS IN MIND
WHEN
ORDERING.

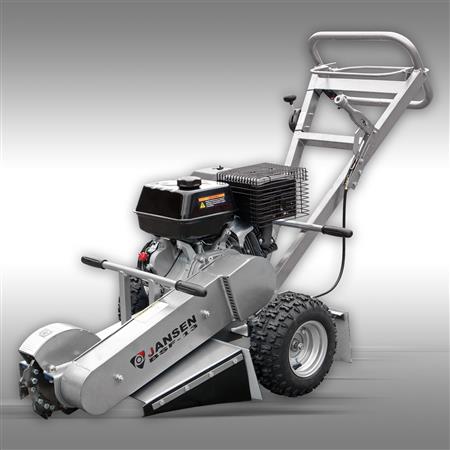

This
stump grinder is very mobile as its width measures a mere 750 mm. With this
narrow width, it fits through almost every doorway. The 12 extra hardened
Wolfram-carbide grinding blades are extremely durable and can be replaced
individually.
This
was tested by Jansen over a period of 100 hours and they didn’t have to
replace any of the blades after this operating time; even the drive belt
remained technically and operationally sound.
The
device has 4 practical bearing rods; this means that you do not need a ramp in
order to load the stump grinder.
The
cutting area is dependent on the approach angle between tree stump and machine
and a cutting depth of 300mm into the ground is possible.
The
grinding width is 55 mm. The grinder has a safety switch (dead man's switch) as
well as a braking system. In this way the device can be fixed at the tree root
while grinding, and can be moved back and forth using the pivot.
The
15 HP LONCIN G420F engine can be started easily using the recoil starter and
has an automatic low oil cut-off system. Performance has been optimally geared
toward the size and cutting assembly of the root grinder.
Technical specifications:
- 4-stroke
OHV engine, 420 ccm, 15 HP LONCIN G420F
- Centrifugal
clutch
- Recoil
starter
- Rotation
speed: 2100 rpm
- Total
weight (dry): 100 kg
- Fuel
type: petrol
- Tank
capacity: 6 litres
- Fuel
consumption: Approx. 1.2 – 1.5 L/h
- Dimensions:
152x75x112 cm (LxWxH)
