HAND STARTED ENGINE
ELIET deliberately chose a spartan design without
frills. The aim was to create a reliable shredder with the Vector 4S
that is always ready for any shredding job and also requires little
maintenance. Therefore, the Honda engine was only equipped with a
reliable manual start. Thanks to the small resistance of the blade
system, the engine starts up very smoothly.

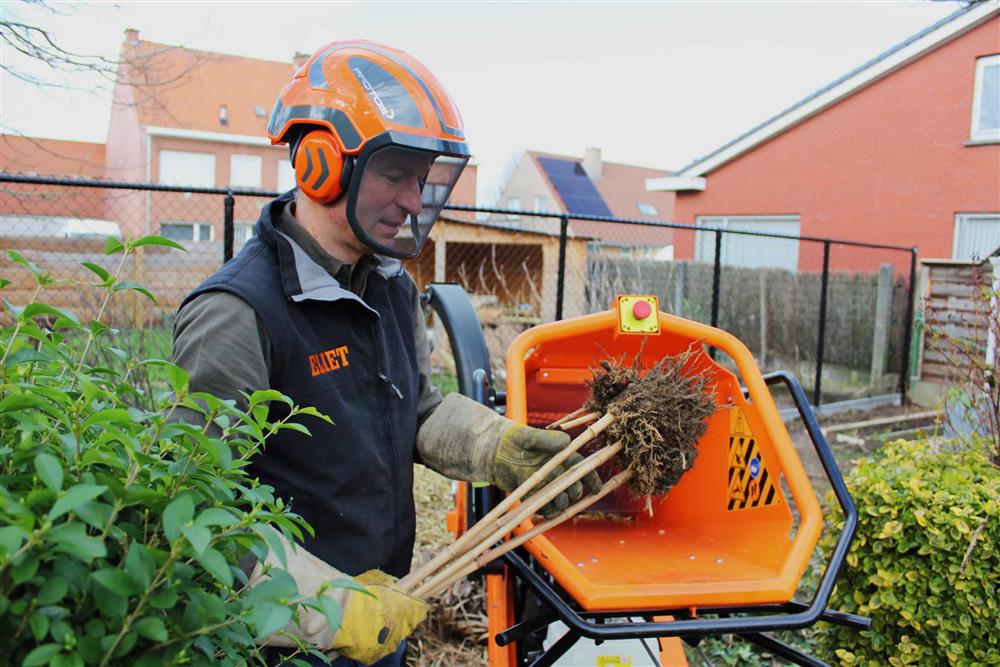

WIDE FEED-IN OPENING.

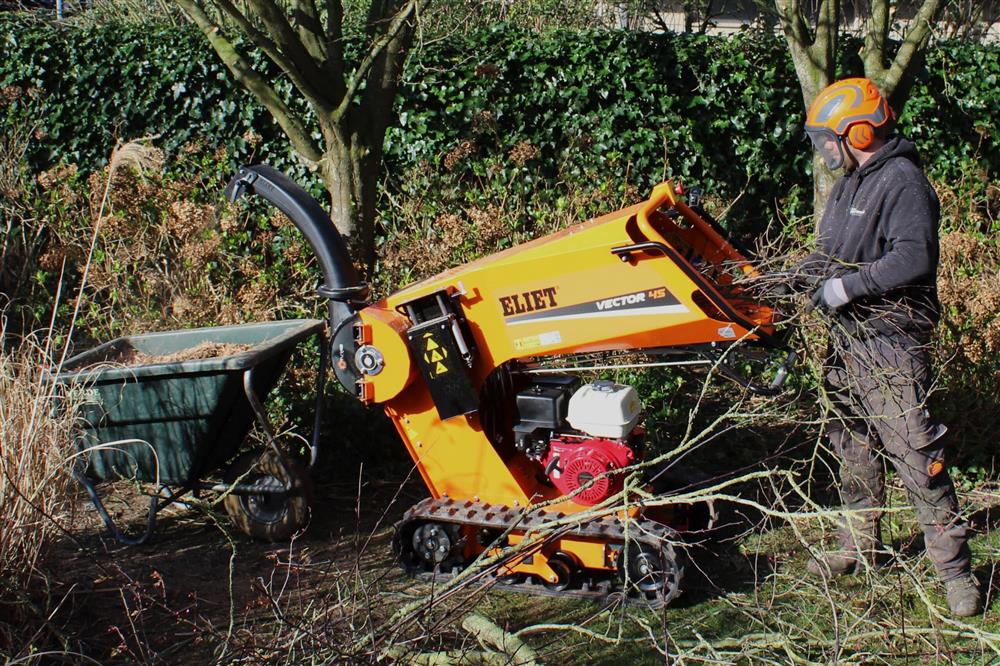

The Vector 4S is an all-purpose shredder that adds great value
when it comes to handling bulky leafy trimmings. The hopper is tailored to
this. The wide flat hopper bottom lends itself to depositing large
packages of hedge trimmings on it and pushing them through to the wide
feed roller. The contours of the hopper opening are nicely rounded
to promote smooth and safe feeding.
POWERFUL FEED ROLLER
The maximum throughput of the Vector 4S is set for branch
thicknesses of 80 mm. At 156 mm, the diameter of the feed roller is
sufficiently large for this. With its sharp claws, the feed roller has a firm
grip on branches and also climbs effortlessly on large volumes of bulk
pruning waste. The feed speed is sized so that the engine rarely runs into
trouble and the operator does not have to intervene often.
EASY OPERATION.
The control lever for the feed roller is strategically placed on
each side of the feed hopper so that both right- and left-handed operators
always have it within reach. The mechanically operated hydraulic valve
has 3 positions. Very smoothly and finger lightly one switches between
feed, stop and return.
ROTATABLE PLASTIC BLOWER NOZZLE.

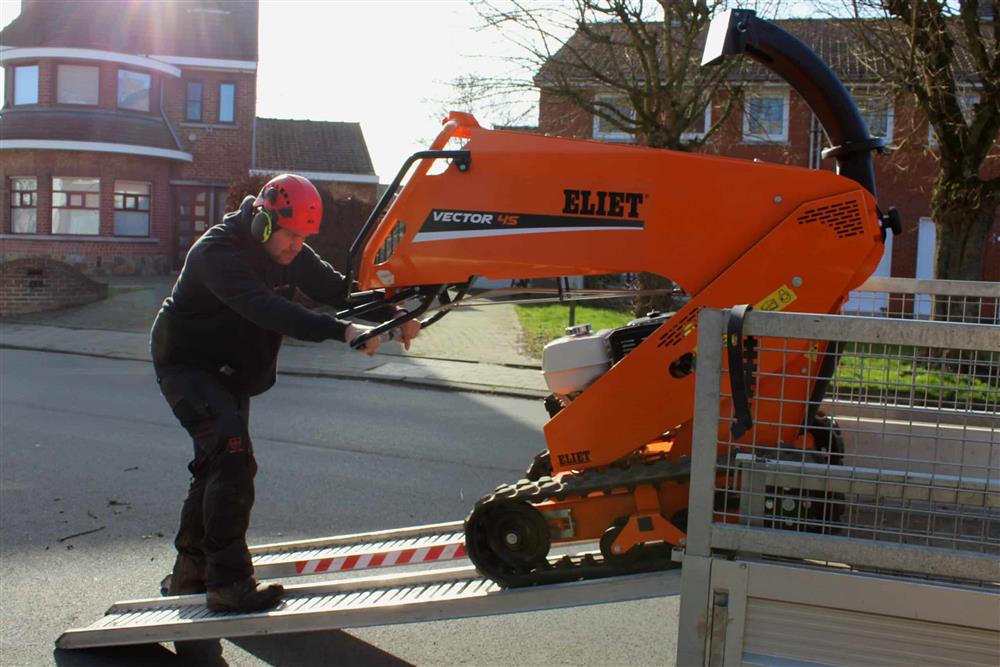

The Vector 4S is a compact machine that you can drive into any
garden. This way you can always get to the place where the trimmings are
piled up. You prefer to place the machine with its feed-in opening in the
direction for the most favorable feed path. Still, you retain complete
freedom to blow the chippings directly to where you prefer. Indeed, the
blowpipe is rotatable over 280°, creating a very large range that allows you
to choose the optimal setup in any situation. Because the nozzle is made of
plastic, there are far fewer blockages.
SAFE WORKING CONDITIONS.
When designing the Vector 4S, ELIET made no compromises when it
came to safety. A safety bar encloses the feed-in opening on three sides.
The operator can even operate it hands-free if an emergency situation
requires it. In addition, a recognizable emergency stop button is
strategically placed above the feed-in opening. This also leaves bystanders
in no doubt as to how to switch off the machine quickly and risk-free in
an emergency.
FAST PITSTOP
Without a doubt, knives are the wear parts that require the most
aftercare. Checking, sharpening, turning or replacing knives
therefore requires frequent access to the grinding chamber. ELIET
designed a large access hatch that provides access to both blades
and the impellor of the TurboDischargeTM system in less than 30sec
without the use of tools. This ensures minimal machine downtime for
maintenance, contributing to optimal use and long machine life.
Display SKU : EL-MA 034 030 209
Model : Eliet
Vector 4S Cross Country Shredder (Tracked)
Engine Make : Honda
GX390
Engine Power : 13hp
Feed Roller : Hydraulic
Material
Diameter : 8cm
Working Performance/h : 3 m³
Chopping Speed
(cuts/min) : 56,000
Blades : RESISTTM/8.3 (20 pcs)
Feed Intake
Opening : 520 x 540 mm
Dimensions : L1750 x W750 x H1540 mm
Weight : 265kg
