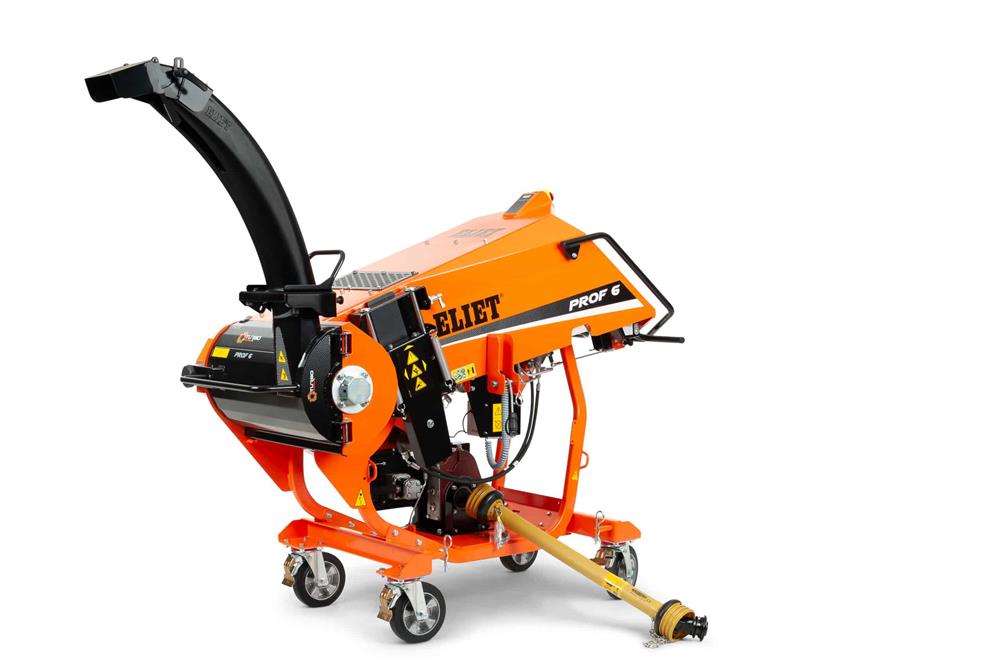

ELIET Prof 6 Shredder (PTO)
SKU: EL-MA 032 040 000
The ELIET Prof 6 green waste shredder (PTO) is equipped with a Turbo
Discharge™ system: a suction turbine creating a vacuum effect that sucks the
green waste into the shredder and then blows the shreds out through a rotating
blow chute. The permanent air flow of the turbo generator constantly cleans the
system, so that clogging is virtually impossible.
The resulting
‘BioTech’ chips have a favourable fibre structure that breaks down fast. These
BioTech chips can contribute to improving a composting system or be used as
filling material for garden borders.
55 – 35hp Tractor
required
ABM SYSTEM
The ELIET PROF 6 has an additional feature, namely
an ABM system (Anti-Block Motor). This ingenious system fully autonomously
regulates the feed speed. A sensor meticulously controls every change in the
revolutions of the engine.
V-SAFE INFEED HOPPER
The specially
shaped V-safe infeed hopper ensures that larger parcels of pruning waste can be
fed in quickly and safely.
BLADE TURBINE
Natural trimming chips
are not discharged on the basis of the removal force of the blade system, but
are carried away by the powerful airflow generated by the 325 mm blade
turbine.
BLOW CHUTE
The Prof 6 blow chute is a fine example of
engineering. Its shape prevents turbulence and the design of the curve was based
on the optimal trajectory of the fl ying chips. As a result the machine has
phenomenal propelling capacity. The choice for synthetics as the material for
the blow chute was a very deliberate one: it is seamless, corrosion resistant,
perfectly smooth and sound absorbing. Its low air resistance makes the chute
less inclined to clog. The blow chute has a discharge height of 1,8 m / 6 ft and
a rotation span of 280°.
AGRICULTURAL TYRES WHEEL DRIVE
The
wheels of the new Prof 6 were equipped with a powerful wheel motor. The speed
forward or in reverse is controlled with a simple movement from the pulse via a
rotating handle on the handlebar. The more the handle is rotated forwards or
backwards, the faster the machine moves in that direction. The wheel drive is so
powerful that it takes only one man to load or unload the machine from a van or
a trailer.
BLADES
The blades that are fitted to the Prof 6 are
not ordinary steel blades. The Prof 6 is designed to operate at least 8 hours a
day. The blades have been specially designed so that their blade life matches
the workload and duty cycles.
MAINTENANCE-FRIENDLY
Under the
“FAST PITSTOP” motto, the machine is designed to be dismantled in record time to
access the critical maintenance points. This typically does not require any
tools. You can perform a quick check-up or routine maintenance at the end of
each working day. It also facilitates somewhat more involved maintenance. This
keeps the machine in top working order so it can deliver optimal performance
every day.
Display SKU : EL-MA 032 040 000
Model : Eliet Prof 6
Shredder (PTO)
Engine Make : B&S Vanguard 400 ES
Engine Power :
14 hp
Feed Roller : Hydraulic
Material Diameter : 10cm
Working
Performance/h : 4 m³
Chopping Speed (cuts/min) : 48,000
Blades : 24
Eliet ResistTM /8
Discharge Height : 1800mm
Dimensions : L1780 x
W810 x H1520mm
PTO : Yes – requires 15-35hp tractor
Weight :
308kg
SKU:.NMA032040000
...
