XT1 SERIES
The Cub Cadet XT1 range of lawn tractors are ideally equipped for mowing,
collecting and transporting clippings and can be expanded with a wide range of
accessories. Strong and durable, the fully robotically-welded frame with new
e-coating corrosion defence system provides the ultimate protection and
hydrostatic drive systems ensures you a smooth and exacting
drive.
XT1 OR95 95CM/38
The solid, stable and durable frame features an e-coating corrosion defence
system providing the ultimate stability and protection. The cutting blades are
activated with the simple pull of a button and the height of the cut can be
adjusted through a wide range of 25mm to 100mm. The hydrostatic drive system
ensures a smooth ride and is very simple to operate, just push the pedal and
go.
The XT1 OR95 features a unique anti-clog system, designed to
transport the grass clippings into the grass bag in the most efficient and
effective way. Optional rear grass deflector is also available for use when
collection is not required.
Cutting width : 96cm (38")
Transmission :
Hydrostatic
Rated power kW/min -1 : 6,2
/ 2,1
Mowing area in m 2 /h: 5500
Grass bag
capacity (l) : 320
EAN: 4008423872217
MODEL NO : 13C8A1CB603

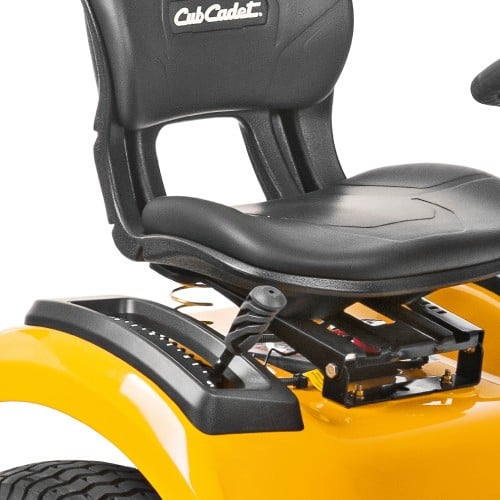

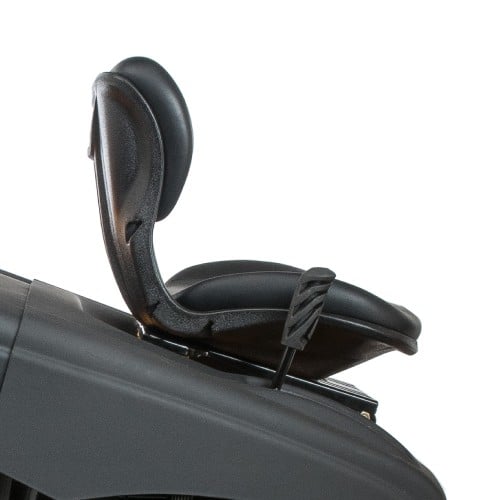

DIAGONAL ADJUSTABLE SEAT
The seat can be adjusted to suit you and
provide pure comfort whilst you mow.
MECHANICALLY SUPPORTED CUTTING HEIGHT ADJUSTMENT
Quickly and easily
select the perfect setting with the widest adjustment range on the market from
25-100mm

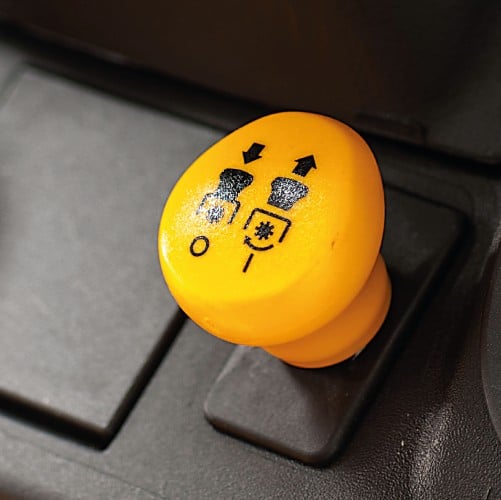

PUSH BUTTON BLADE START
Activate the cutting blades safely and more
efficiently.

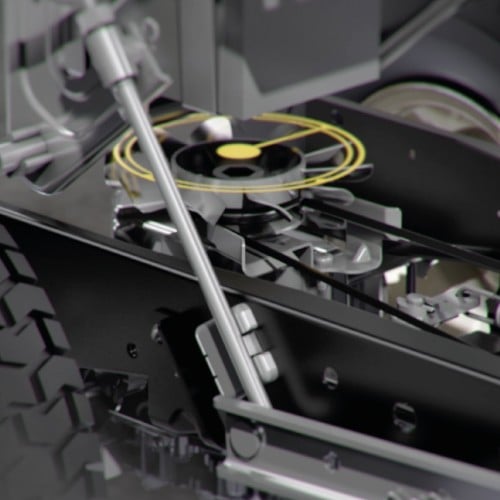

HYDROSTATIC TRANSMISSION
Impresses with its modern technology and
featuring a self-lubricating hydro pump for minimum maintenance and maximum
durability. The hydrostatic transmission also stands out for its velocity
control as well as continual forward and reverse speeds. No clutching or
shifting required which means you can drive more gently with greater accuracy.
The XT Series lawn tractors are foot-pedal controlled. The LT Series tractors
are controlled by either a hand lever (side discharge tractors) or a foot
pedal (rear discharge tractors).
SPECIFICATIONS
ENGINE XT1 OR95
Engine : Cub Cadet
Engine displacement (cm3) : 547
Rated
power (kW/min-1) : 6,2 / 2,1
Cylinders
: Single
Fuel tank capacity(l) : 11.4
DRIVE SYSTEM
Transmission : Hydrostatic
Air speed (max) : Infinitely variable
Control : Foot pedal control
Cruise Control :
Standard
CUTTING SYSTEM
Mowing area (m2/h) : 5500
Cutting width : 96cm (38")
Cutting height
:25–100
Number of blades : 2 Deck Engagement :
Electric
PTO Deck height positions : 12 positions
Deck wheels : 4 balls deck wheels
Wash
nozzle / mulching plug : Standard / (196-551-000)
DISCHARGE SYSTEM
Grass bag capacity (l) / accessory no.
: 320/(196-555-603 Anti-Dust
System)
Bag lever / hardtop : Rounded
ergo telescopic handle / plastic
Grass Deflector : –
/ Standard
FRAME
Front axle : Heavy-duty cast-iron
Front bumper : Single Tube
Turning radius
(cm) : TIGHT TURN 38cm
Wheels (front/rear) (Zoll) :
15 x 6 Turf Saver / 18 x 8.5 Turf Saver
Wheel
bearings :Sleeve bearings
Frame : Fully
robotically-welded frame
ELECTRIC
Headlights : LED
COMFORT
Seat type : High Back Seat Cub Cadet
Seat adjustment : Lever, angled, 10 slide
Steering wheel : Ergo Soft-Grip
Tool box / Cub
holder : Standard / Standard
12V Plug
Mow in reverse : Standard
Battery charger :
–
DIMENSIONS
Noise values (dB) : 88 / 98 / 100
Vibration value body (K-factor) (m/s2) : 1 / 0,5
Vibration value hand-arm (K-factor) (m/s2) : 5 /
1
Dimensions (L / W / H) (cm) : 245 / 100 / 118
Weight net (kg) : 235
