KELLFRI ROTARY DISC MOWER 1.6M | 2.0M | 2.4M

Contact us for a price

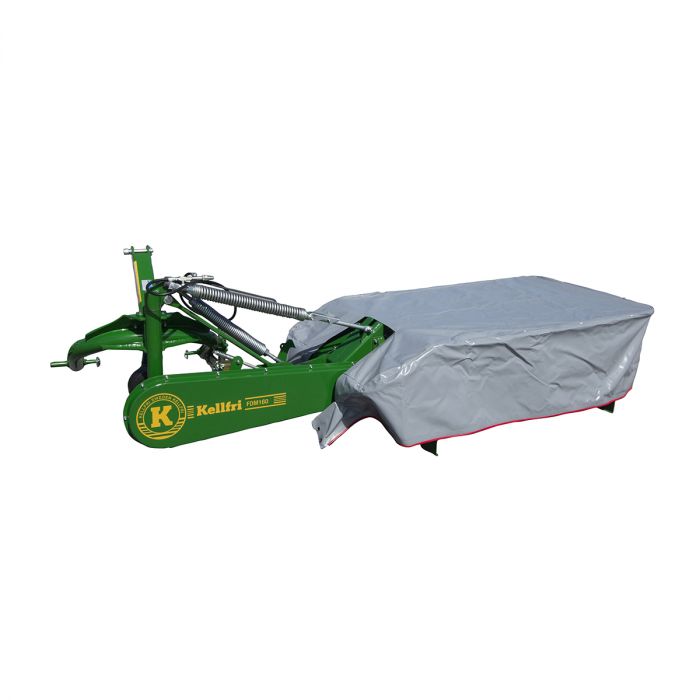

Kellfri Rotary Disc Mower, 1.6 m | 2.0m | 2.4m with up to six oval rotary discs




• For tractors with 35 hp up to 50hp or more
• 4 or 6 oval rotary discs
• For three-point linkages category 1 and 2
• Adjustable relief springs
• Cutter bar with gliding plates
• Oil included



A rotary disc mower is an ideal tool for cutting your pastures



Kellfri’s rotary mower gently harvests grass from your field without damaging roots of the mowed culture. This increases efficiency and the probability of a good crop at next mowing.This machine is specifically designed for grass surfaces and should not be use on stony terrain. For mowing rough terrain, we instead recommend Kellfri Flail mowers.

Our FDM160 rotary disc mower is suitable for you if you are looking for a slightly smaller rotary disc mower to use on small to medium-sized pastures. Our FDM240 rotary disc mower is a practical tool for you if you have larger grasslands, and you want a simple way of mowing grass for feed or hay.The rotary disc mower is designed and adapted to enable you to harvest grass for feed or hay gently and effectively.

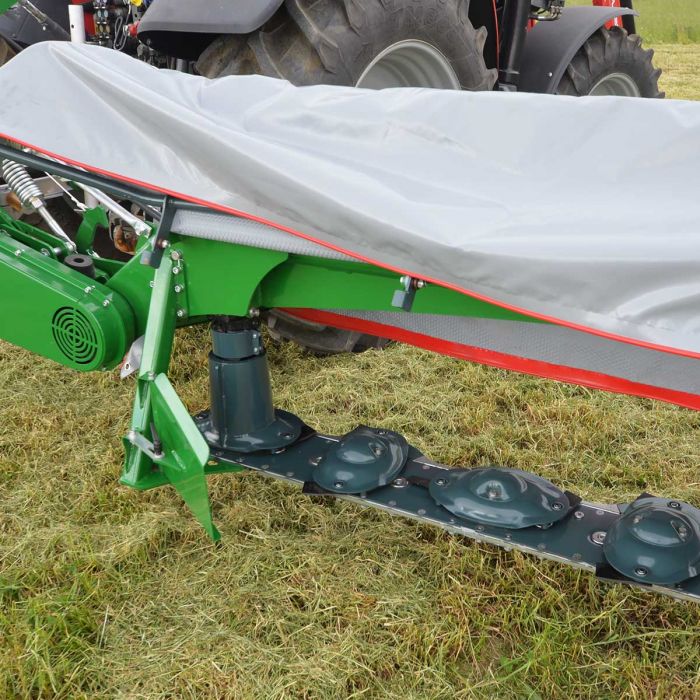

The mower is equipped with four oval rotary discs that cut the grass effectively, with better cutting performance that gives good growth. There are two raised rotary discs with guide blades in each outer edge, which raise the throughflow speed and ensure that the crop flows freely without interruption. Individual skids under each disc protect the bar, which lies well balanced and very lightly against the ground.

The rotary disc mower is fitted with a protective cover over the whole cutter bar, protecting both the tractor and the surroundings from stone chipping and grass spray. The protective frame around the cutter bar is constructed of a single frame which gives stable support to the entire protective frame and protective cover. The protective frame can also be folded open during maintenance.

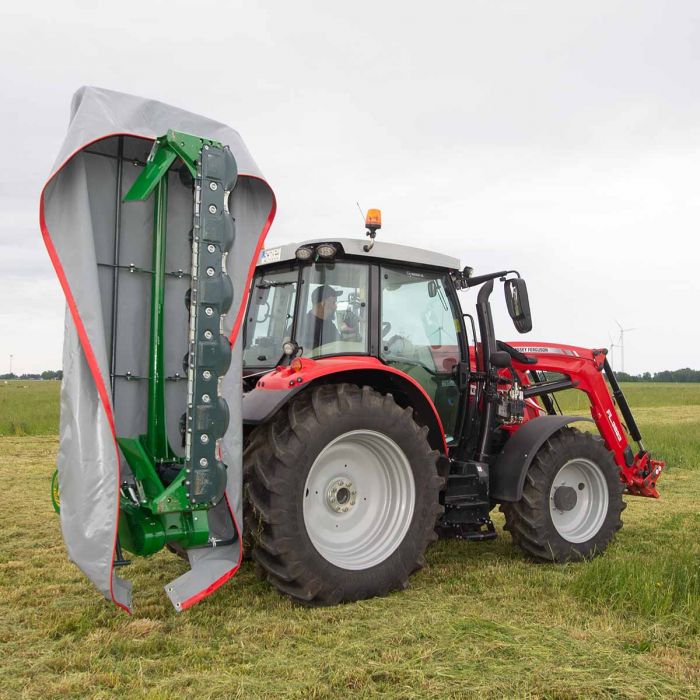

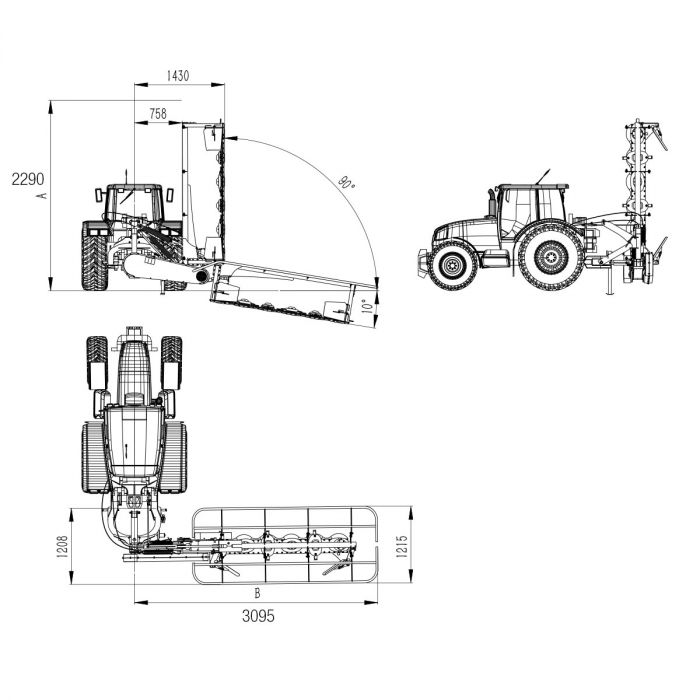

The cutter bar is fitted with gliding plates at both ends. The bar is set at 90° in transport mode and can if necessary be lowered to 10°.


Collision protection, relief springs and hydraulic raising


The machine is equipped with a stone ejector as collision protection, which ejects backwards at an angle in order to reduce stresses in a collision.

Adjustable relief springs relieve the pressure of the rotor beam against the ground to minimise damage to the ground.

The rotary disc mower has a hydraulic raising function with a manual lock for a secure transport mode. The transport width is no wider than the tractor.

Geometrical and powerful energy transmission from PTO to beam by means of ventilated belt drive and bevel gear.

Supplied with PTO drive shaft and transmission oil. The rotary disc mower requires one double-acting hydraulic outlet on the tractor. Two hydraulic ½ inch quick coupling male hoses.

Oil included. Check the oil level before first use.

Some images and video show Rotary disc mower 2.4 m.

1.6M 2.0M 2.4M
WORKING WIDTH 1600 mm 2000 mm 2380 mm
ENGINE POWER 35 - 50 hp From 50 hp From 50 hp
COLOUR Green Green Green
CUTTING HEIGHT 0 - 100 mm 0 - 100 mm 0 - 100 mm
BLADES 8 pcs 10 pcs 12 pcs
ROTOR SPEED AT 540 RPM 2980 rpm 2980 rpm 2980 rpm
ROTARY DISCS 4 x oval 5 x oval 6 x oval
ROW WIDTH 620 - 1340 mm 1000 – 1700 mm 1380 – 2120 mm
THREE-POINT LINKAGE Cat 1 & 2 Cat 1 & 2 Cat 1 & 2
PTO SPEED 540 rpm 540 rpm 540 rpm
WEIGHT 495 kg 527kg
